In situatia in care avem de cofrat pereti lungi cu inaltime mare, vine la indemana sistemul nou de ancorare dintr-o parte. Solutiile existente necesita accesorii suplimentare, respectiv cele doua laturi ale cofrajelor sunt diferite. Cu sistemul Mammut XT aceste probleme dispar. Sistemul nou, combina avantajele metodelor existente si elimina dezavantajele tehnice. Fiind sistem monobloc, se evita pierderea accesoriilor complementare.

  • sistem flexibil de cofrare a peretelui
  • aplicatie universala in constructii industriale si civile
  • orificiu de legatura combinat integrat in cadrul cofrajului

Documente

Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - fisa tehnica

fisa tehnica

pdf 50.1 MB Engleza
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT

Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - instructiuni de montaj

instructiuni de montaj

pdf 3.4 MB Engleza
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT

Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - prezentare detaliata

prezentare detaliata

pdf 18.3 MB Engleza
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT

Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - prezentare generala

prezentare generala

pdf 2.5 MB Engleza
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT


Nu gasiti ce ati cautat?

Cerere document

Specificatii

capacitate portanta [kN/m²]

capacitate portanta [kN/m²]

100

dimensiune - inaltime [cm]

dimensiune - inaltime [cm]

125; 250; 300; 350

dimensiune - latime [cm]

dimensiune - latime [cm]

25; 50; 75; 100; 125; 250

masa neta/suprafata [kg/m²]

masa neta/suprafata [kg/m²]

~62

tip aparitie

tip aparitie

monobloc

Prezentare

Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT

Mammut XT - A flexible formwork

Mammut is the high-performance, economical solution for modular large-scale construction. With the new Mammut XT system MEVA is ­setting new standards and thus continuing its success story in the field of 100 kN/m² formwork. As a convincing solution on construction sites this flexible wall formwork system maximises cost effectiveness.

Product characteristics

Size

  • Up to 8.75 m² contact area per panel (350 x 250 cm)
  • For storey heights up to 350 cm without vertical extension


Capacity

  • Permissible fresh concrete pressure (to DIN 18218) over entire surface of 100 kN/m² (DIN 18202, Tab. 3, Line 7)


Universal application in industrial construction and civil engineering

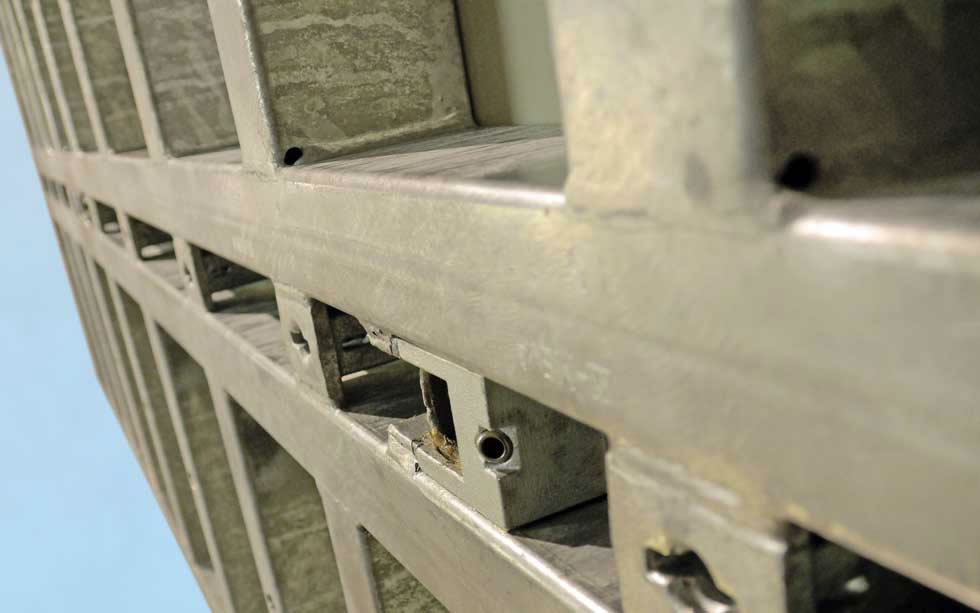

Closed hollow steel profile

  • Structurally robust
  • Torsion-proof
  • Hot-dip galvanised to facilitate cleaning and reduce concrete adhesion

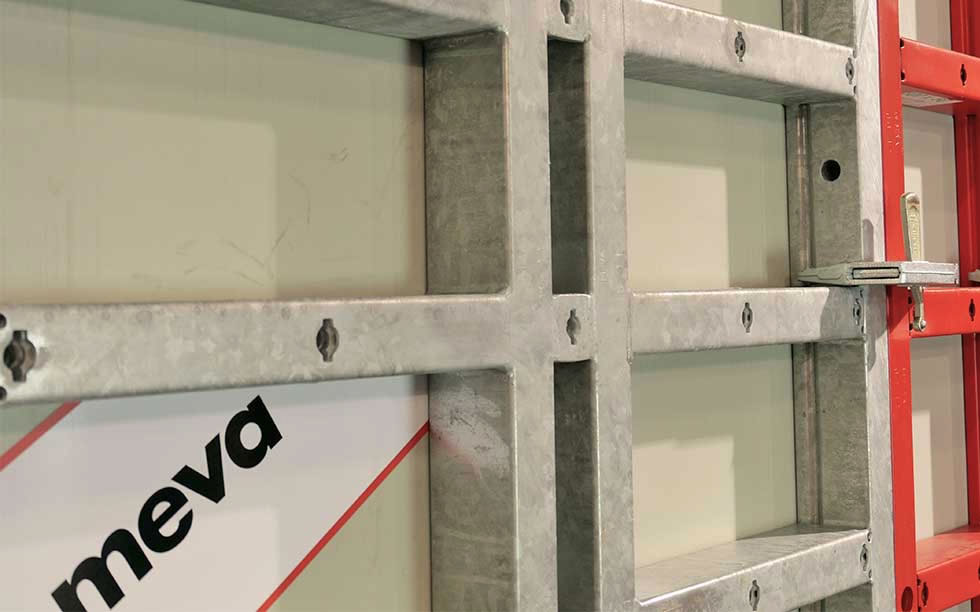

Smart multifunctional profile

  • Welded-in Dywidag nuts
  • All accessories, e.g. brackets, push-pull props and alignment rails, attached with MEVA flange screw

Combination tie hole integrated into the formwork frame

  • No assembly time for additional parts and accessories
  • No loose parts
  • Simple handling


Initial and final formwork are identical

Intelligent MEVA product design

  • MEVA assembly lock for a structurally continuous connection with only a few hammer blows
  • Bump notches for panel widths of 125 cm and more to ­simplify adjustment and alignment with crow bar
  • High-quality alkus all-plastic facing with 7-year warranty

Compatible with Mammut 350

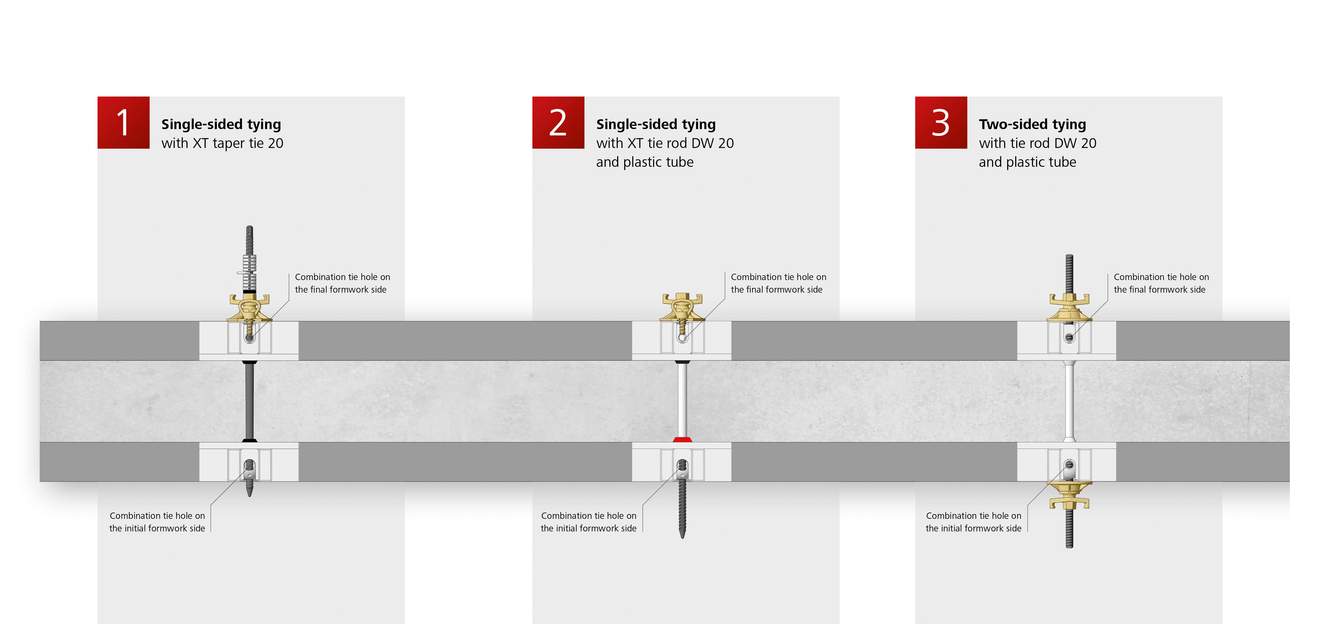

One system - 3 tying methods

Every construction site is unique, and the formwork requirements vary from project to project. Mammut XT creates an ideal basis for this as the system ensures that you remain flexible and well equipped for every task. Thanks to the smart combination tie hole, it is possible to select between three tying methods with a flick of the wrist. Every panel can be used for both initial and final formwork without additional assembly work. This saves times and simplifies the logistics.

Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - One system - 3 tying methods
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - One system - 3 tying methods

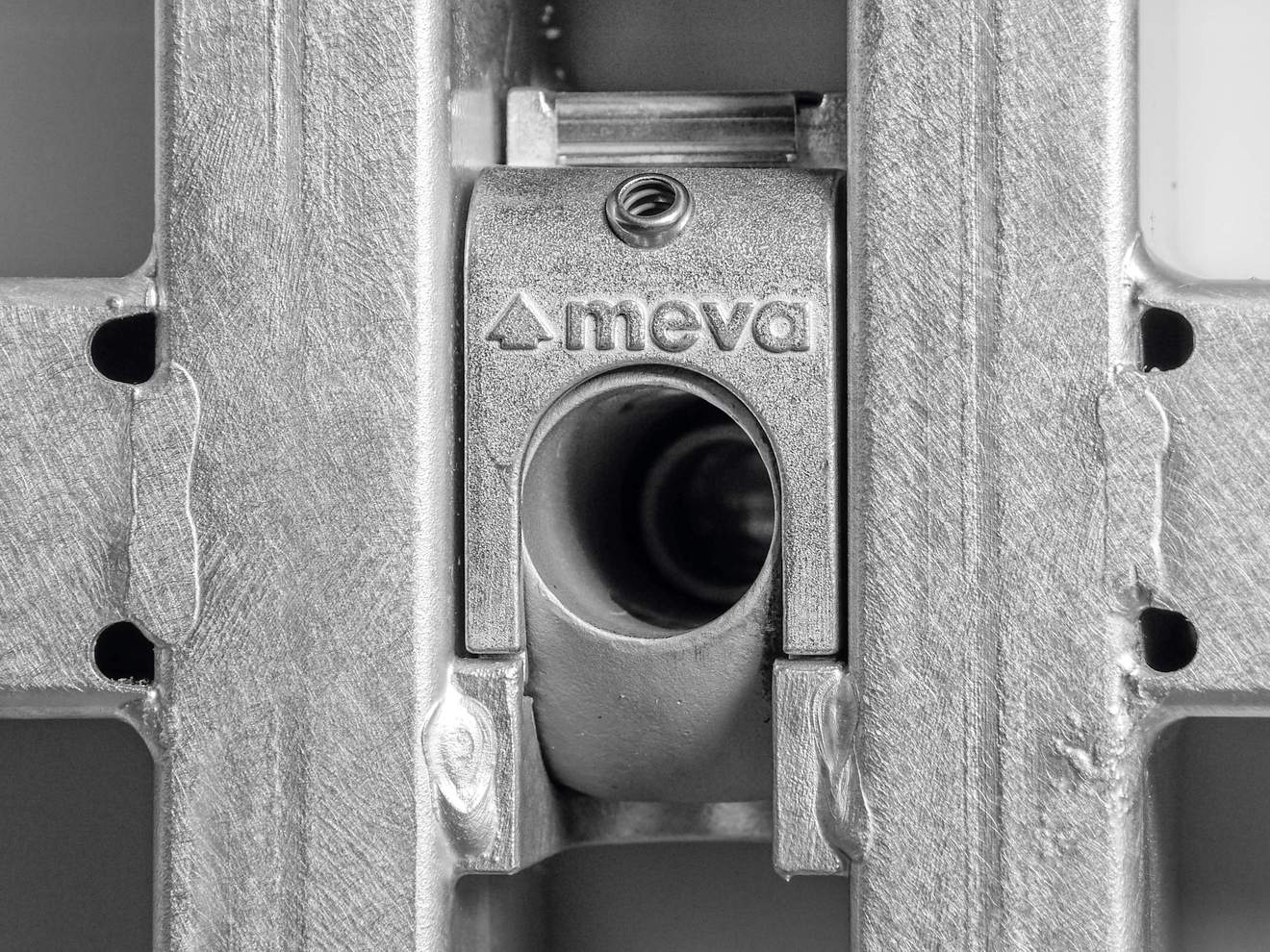

Smart combination Mammut XT tie hole

Using an internal body that can be positioned as required with the XT-combi-lever, the tying method can be changed easily with a flick of the wrist.

The combination tie hole is integrated into the frame, ensuring that no parts protrude. No installation and removal are required.

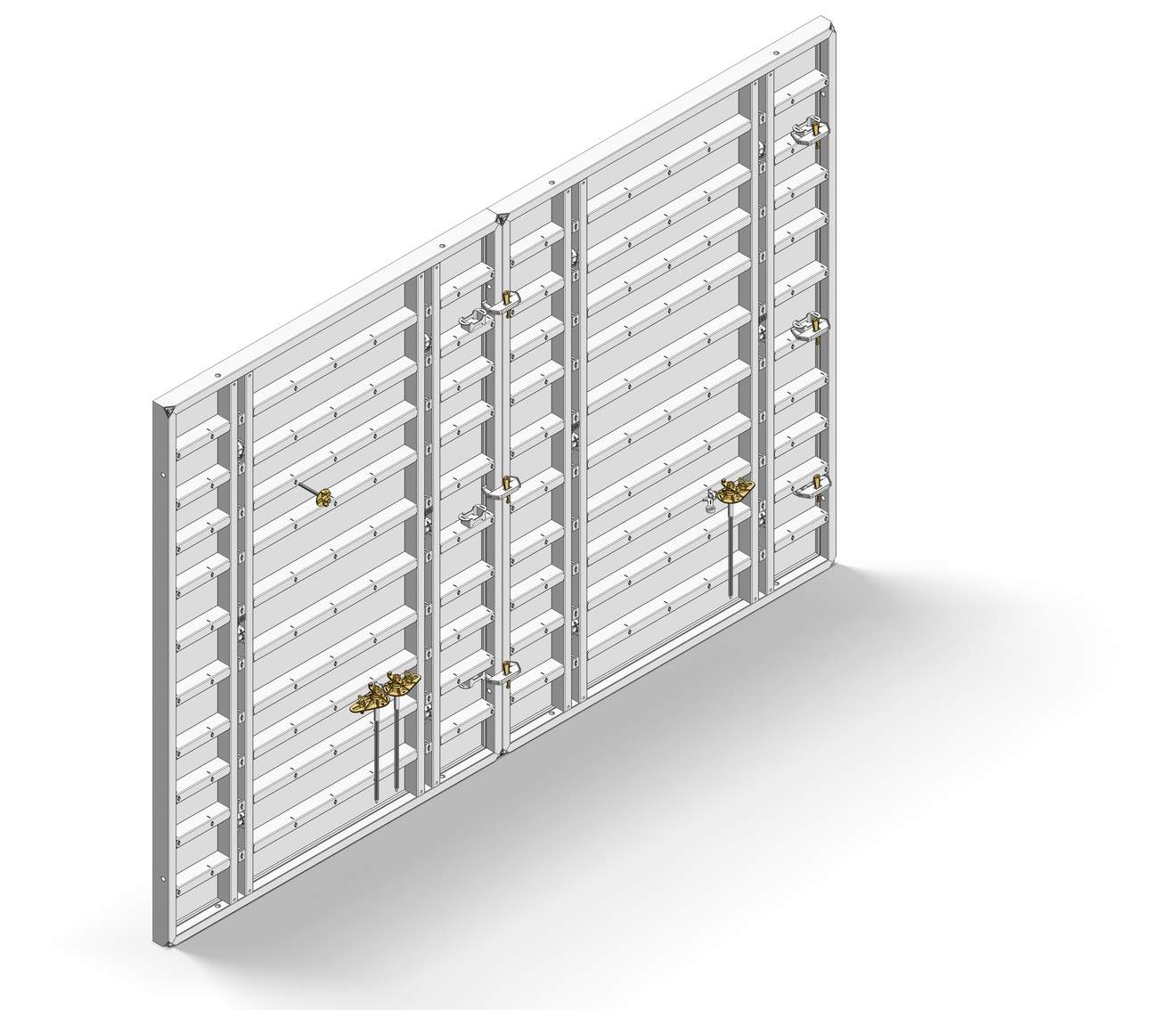

Large-area formwork has never been this flexible and easy to use

  • Multi-function profile
    made of closed steel profiles with welded-in DW 15 threaded nuts for fast, non-positive attachment of accessories
  • Transport hole
    to attach the crane sling 60, allowing for fast loading, unloading and relocation of panel stacks
  • Flange screw
    All auxiliary equipment is connected non-positively using a single part
  • Combination tie hole
    with a rotating body for single-sided and two-sided tying (three tying methods)
  • Closed profile
    for a high degree of stability and easy ­cleaning – with a hot-dip galvanized surface
  • Bump notch
    allows exact panel positioning without a hammer at the four corners of panels with a width of 125 and 250 cm
  • M assembly lock
    serves as a panel connection to the surrounding groove
  • alkus all-plastic facing
    The alkus formwork facing does not absorb water, swell or shrink. The rugged, smooth surface guarantees first-class quality of the concrete even after repeated use
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Large-area formwork has never been this flexible and easy to use
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Large-area formwork has never been this flexible and easy to use
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Tie rod fixture
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Tie rod fixture

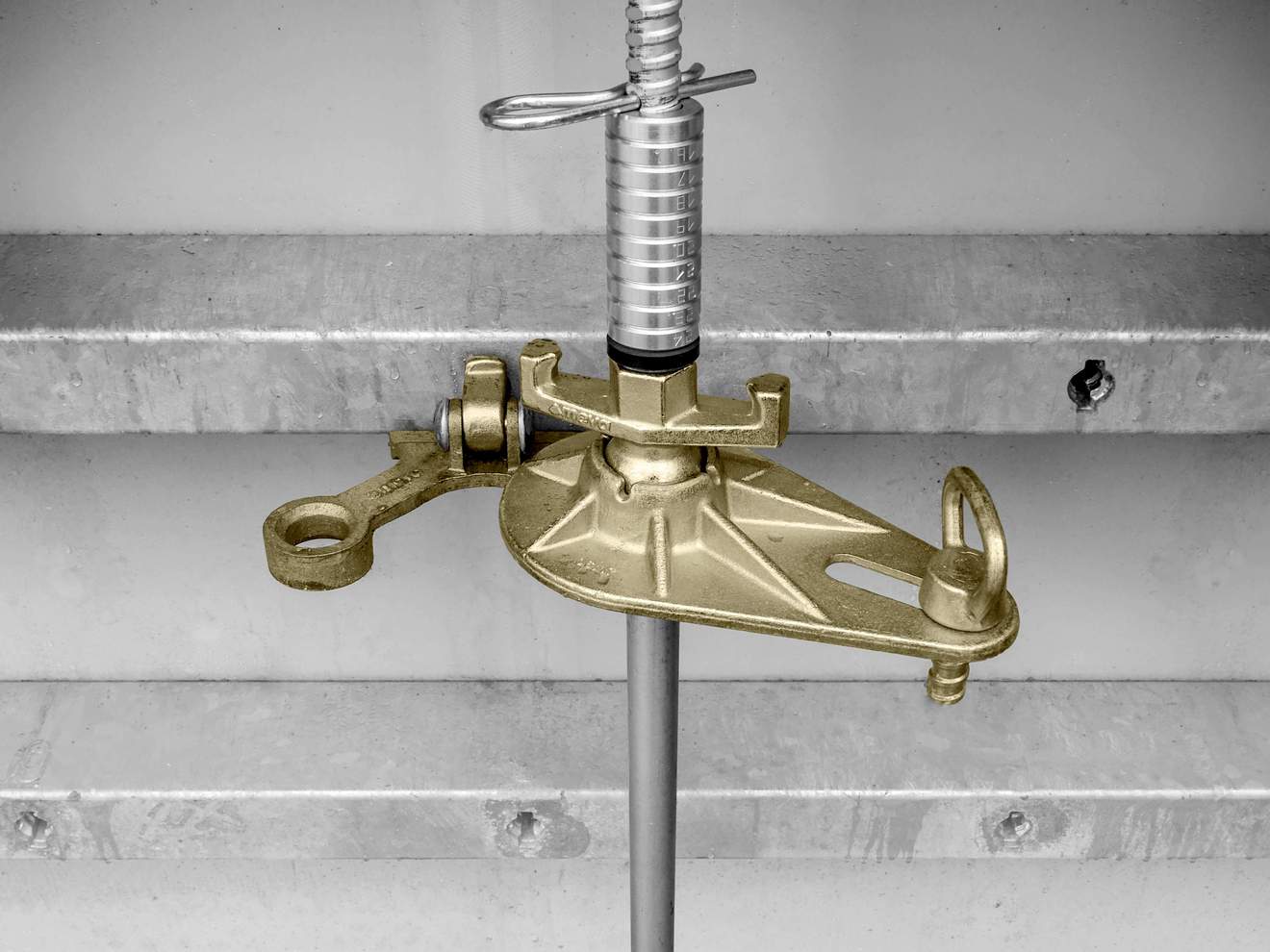

Tie rod fixture
can be attached to the multi-function profile of the vertical or horizontal Mammut XT panel – for safe and rapid transport on the construction site

Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Assembly lock holder
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Assembly lock holder

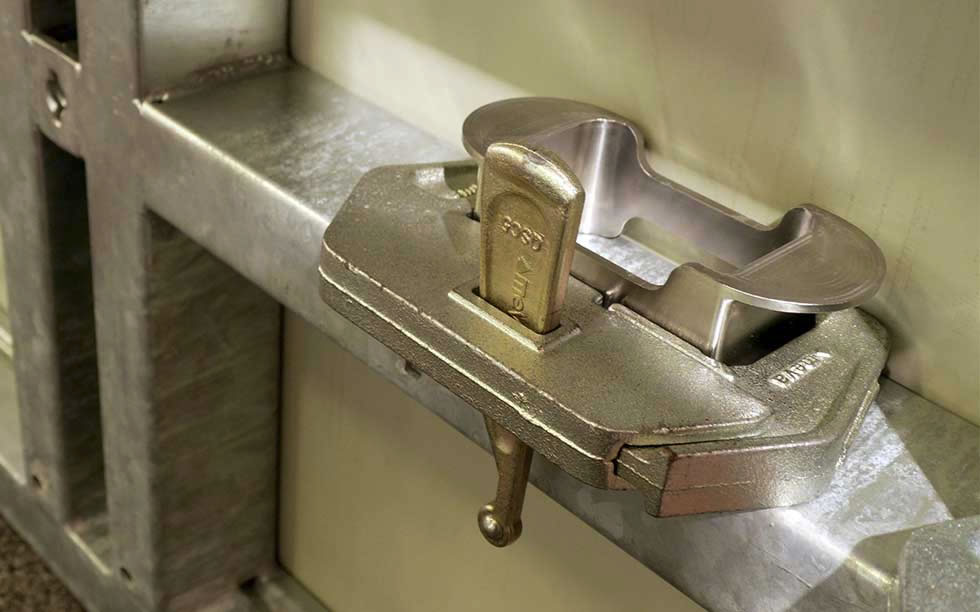

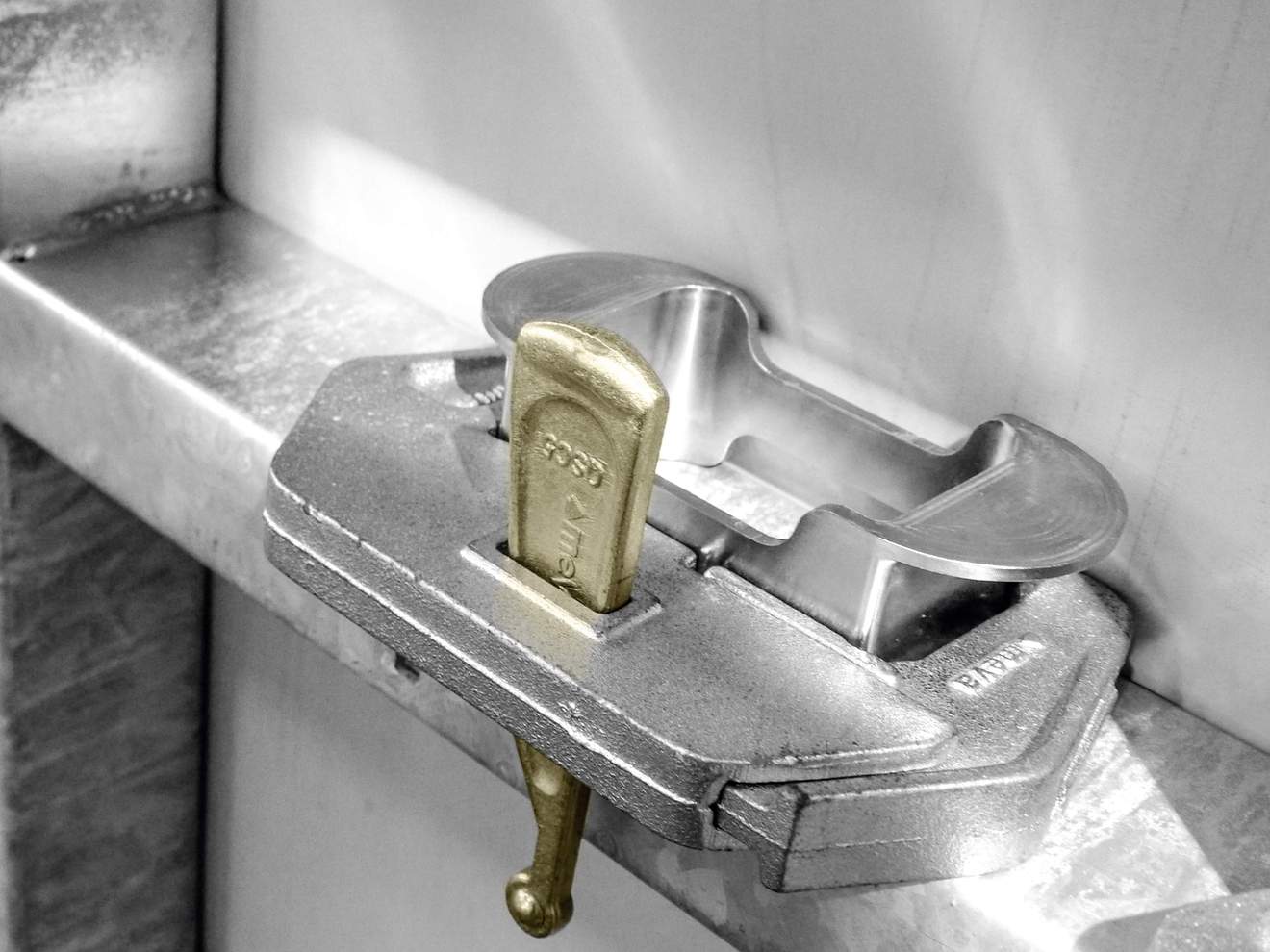

Assembly lock holder
The MEVA assembly lock holders are integrated into the cross stiffeners of the Mammut XT panels with a width of 250 cm and 125 cm. This simplifies the construction site logistics
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Sealing plugs
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Sealing plugs

Sealing plugs

  • available in three versions to close off unused tie holes in the XT panel
  • XT sealing cone for initial and final formwork when tying from one side.

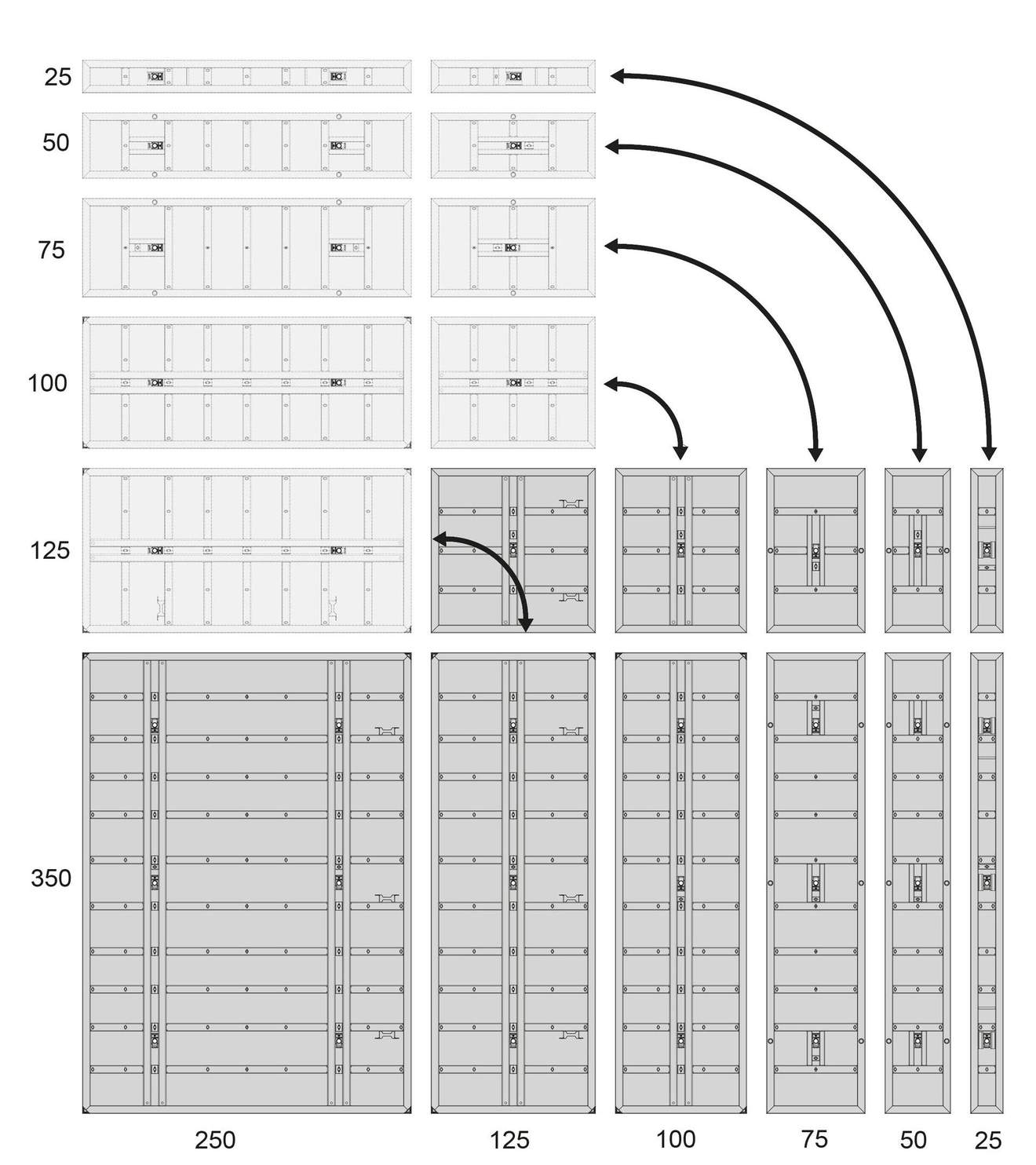

Uniform tie hole and joint pattern

The Mammut XT panel dimensions and symmetrical internal tie holes result in a uniform tie hole and joint pattern for the highest architectural-­concrete requirements. This applies to vertical, horizontal or a combination of vertical and horizontal formwork.

Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Uniform tie hole and joint pattern
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Uniform tie hole and joint pattern

With panel heights of 350 cm to 125 cm and panel widths of 250 cm to 25 cm, Mammut XT is readily adaptable to specific layout geometries while ­simultaneously minimising filler areas.

Optimum size matrix

All Mammut XT panels can be combined vertically or horizontally, or height-extended. The ability to freely combine all panels vertically or horizontally allows for economical width and height extension in increments of 25 cm. Filler areas can also be formed quickly and easily using compensation panels.

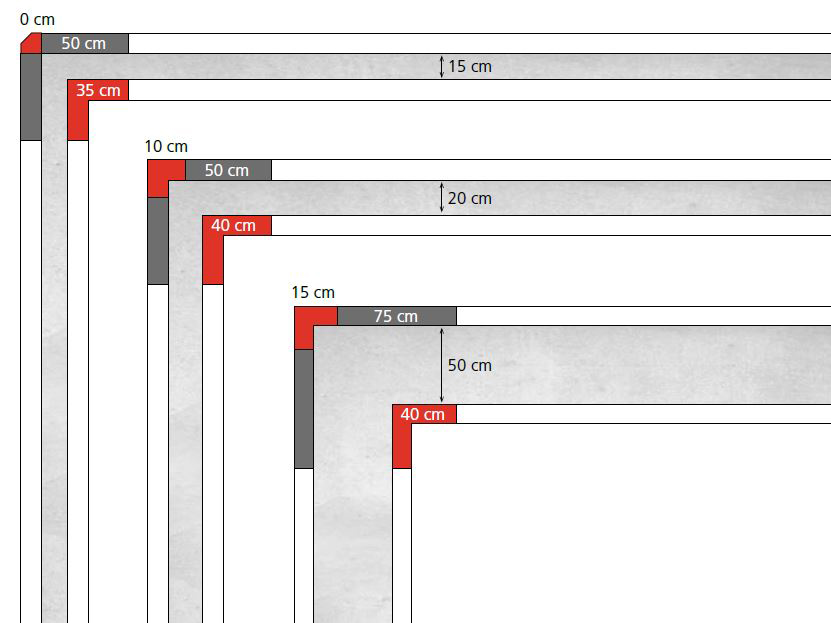

Simple forming of corners

With only three outside corners (side lengths 0, 10 and 15 cm) and two inside corners (side lengths 35 and 40 cm), corners can be formed quickly and easily for all wall thicknesses in 5 cm increments.
With the Mammut XT internal corners and the 50 and 75 cm wide elements with anchoring points in the frame, you can form 90° corners - optionally on two sides - quickly and economically.

Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Optimum size matrix
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Optimum size matrix
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - The XT combi-lever
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - The XT combi-lever

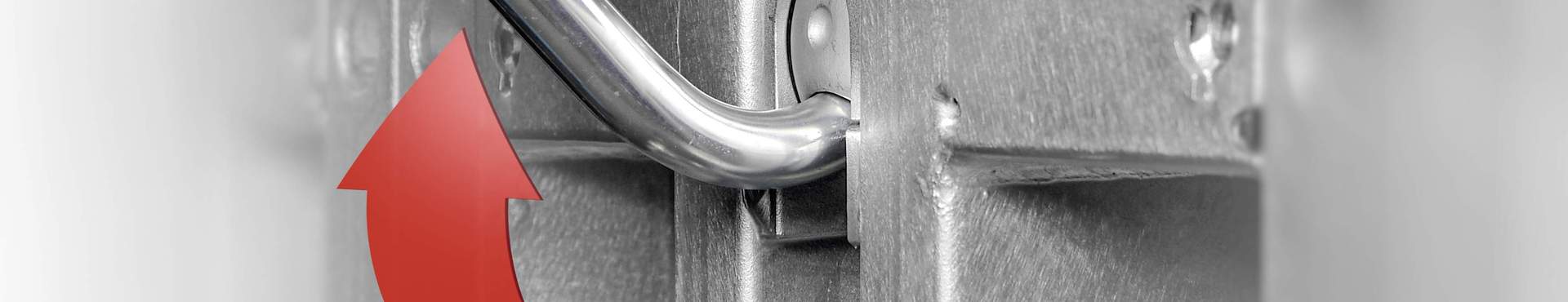

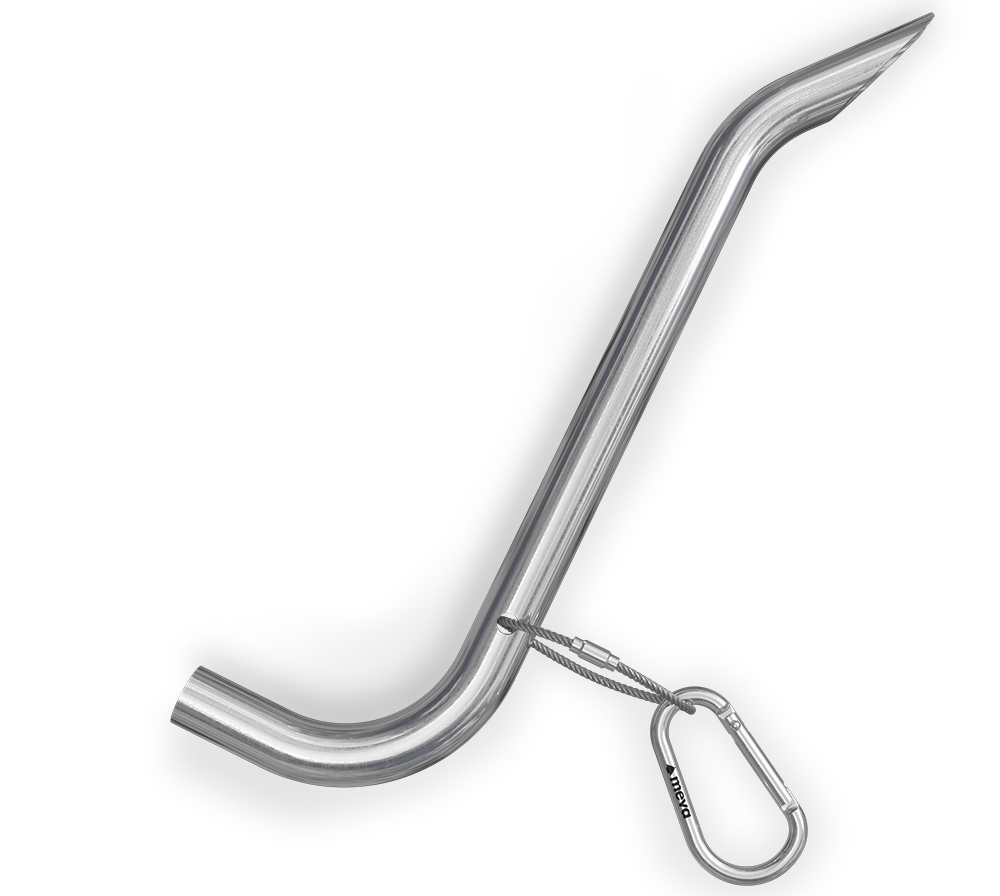

The XT combi-lever

The XT combi-lever is a universal formwork tool fitted with a karabiner that can be attached anywhere.

Depending on the tying method, the XT combi-lever can be used in a wide variety of ways, e.g.

  • To set the tying method in the combination tie hole
  • To remove the XT sealing cone from the wall formwork panel.

Cost-effective all-in system

Modular safety

Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Cost-effective all-in system
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT - Cost-effective all-in system

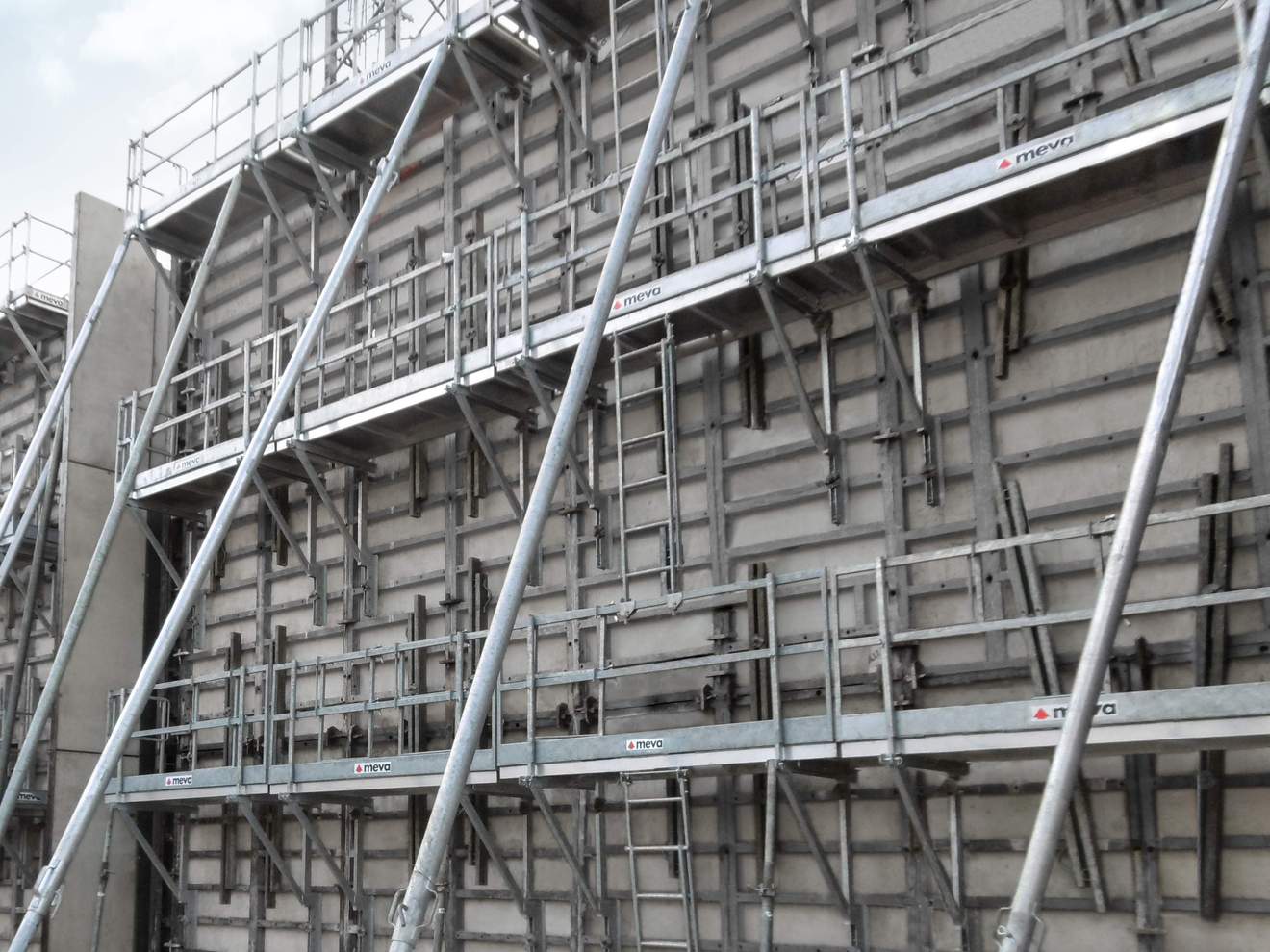

This safety system with a working platform is easy to install using a single component – the flange screw. A loadbearing capacity of up to 200 kg/m² guarantees start-to-finish safety throughout the assembly and concreting operations.

Stiri conexe
MEVA's unique support frame concept at the extension of the Vienna metro
MEVA's unique support frame concept at the extension of the Vienna metro
Support frame concept from MEVA plays to its strengths in a very confined space
MEVA's unique support frame concept at the extension of the Vienna metro
All expectations reliably fulfilled with MEVA
All expectations reliably fulfilled with MEVA
Thanks to the construction in a single cycle, it was possible to avoid ending up with a wide range of colour shades on the concrete due to changing weather conditions
All expectations reliably fulfilled with MEVA
Extraordinary stadium design with MEVA flexible formwork solutions and optimised slab formwork design
Extraordinary stadium design with MEVA flexible formwork solutions and optimised slab formwork design
The goal was to create a dynamic, exciting, and unusual stadium for FC Felcsút
Extraordinary stadium design with MEVA flexible formwork solutions and optimised slab formwork design
Briskly built architectural concrete walls with MEVA  StarTec XT wall formwork panels
Briskly built architectural concrete walls with MEVA StarTec XT wall formwork panels
StarTec XT with large 330/270 panels reduces labour and time requirement
Briskly built architectural concrete walls with MEVA StarTec XT wall formwork panels
New splendour on the Ku‘damm with MEVA products
New splendour on the Ku‘damm with MEVA products
Combined office and commercial building "Gloria Berlin" built in a confined space
New splendour on the Ku‘damm with MEVA products
MEVA with back-step method and bracing
MEVA with back-step method and bracing
Great precision required in construction of new warehouse next to existing building
MEVA with back-step method and bracing
Convincing interplay of MEVA’s extensive product range on large construction site
Convincing interplay of MEVA’s extensive product range on large construction site
Entrance gate to the cathedral city - New Sedelhöfe complex, Ulm, ­Germany
Convincing interplay of MEVA’s extensive product range on large construction site
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT
Sistem de cofraj nou, pentru diafragmele constructiilor de inginerie civila
Cofraj pentru diafragme cu sistem de ancorare variabila MEVA Mammut XT
Y-shaped eye-catcher with the help of a unique feature of the MEVA support structure
Y-shaped eye-catcher with the help of a unique feature of the MEVA support structure
The advantages of MEVA’s support bracket concept: faster construction progress, high cost-effectiveness
Y-shaped eye-catcher with the help of a unique feature of the MEVA support structure
Alte produse ale companiei
Cofraj modular de mana EcoAs, pentru diafragme

Cofraj modular de mana EcoAs, pentru diafragme

EcoAs este un sistem robust, modular de cofraje pentru diafragme oferind flexibilitate pe santierele de constructii rezidentiale si comerciale, fara sa necesite macara. Este echipata cu foaia cofranta din plastic, de lunga durata alkus. Cofrajul este perfect pentru fundatii si puturi, respectiv bazine de inot si lucrari industriale usoare. Disponibil din stocul MEVA.

Brosura
Specificatii
Vezi detalii
Card produs
Cofraj pentru plansee MevaDec

Cofraj pentru plansee MevaDec

Panourile pot fi manevrate cu usurinta manual. Sistemul portant din grinzi: fara popi suplimentari de sustinere, mai putine elemente de asamblare. Cofrare fara decalaje si miscare libera a panourilor MevaDec si peste capetele cazatoare. Adaptare usoara la geometria cladirilor. Reducerea zonelor de compensare. Schimbare fara decalaje a directiei de cofrare. Siguranta sporita la intervale scurte de decofrare (8,0 N/mm²). Sistemul patentat cu cap cazator permite decofrarea timpurie. Popii raman nemiscati pentru sprijinire suplimentara. Avantajul sistemului: componentele identice pot fi utilizate in situatii diferite, iar pozitia si numarul popilor sunt intotdeauna indicate. 1 sistem - 3 metode: 1. Metoda panourilor; 2. Metoda grinzilor principale si secundare si 3. Metoda cap cazator - grinda - panou.

Brosura
Specificatii
Vezi detalii
Card produs
Cofraj pentru plansee MevaFlex

Cofraj pentru plansee MevaFlex

MevaFlex este un sistem versatil si usor de utilizat pentru placi de lemn. Avantajul sau cel mai evident este flexibilitatea sa, care permite utilizarea sa optima in cazul planselor cu planuri de planseu complexe si in cazul placilor cu grosimi variabile si schimbatoare.

Brosura
Specificatii
Vezi detalii
Card produs
Cofraj de diafragme MEVA Mammut 350

Cofraj de diafragme MEVA Mammut 350

Mammut 350 reprezinta noua dimensiune a cofrajelor de diafragma, avand o inaltime standard de 3,50 m, respectiv simetrie absoluta la ancorare si rostuire. Elementul de baza are doua inaltimi, de 350 si 250 cm si se poate asambla pe orizontala sau pe verticala, astfel acopera o suprafata de cofrare de 8,75 m². Sistemul poate fi utilizat in constructiile industriale civile, speciale, de locuinte.

Brosura
Specificatii
Vezi detalii
Card produs

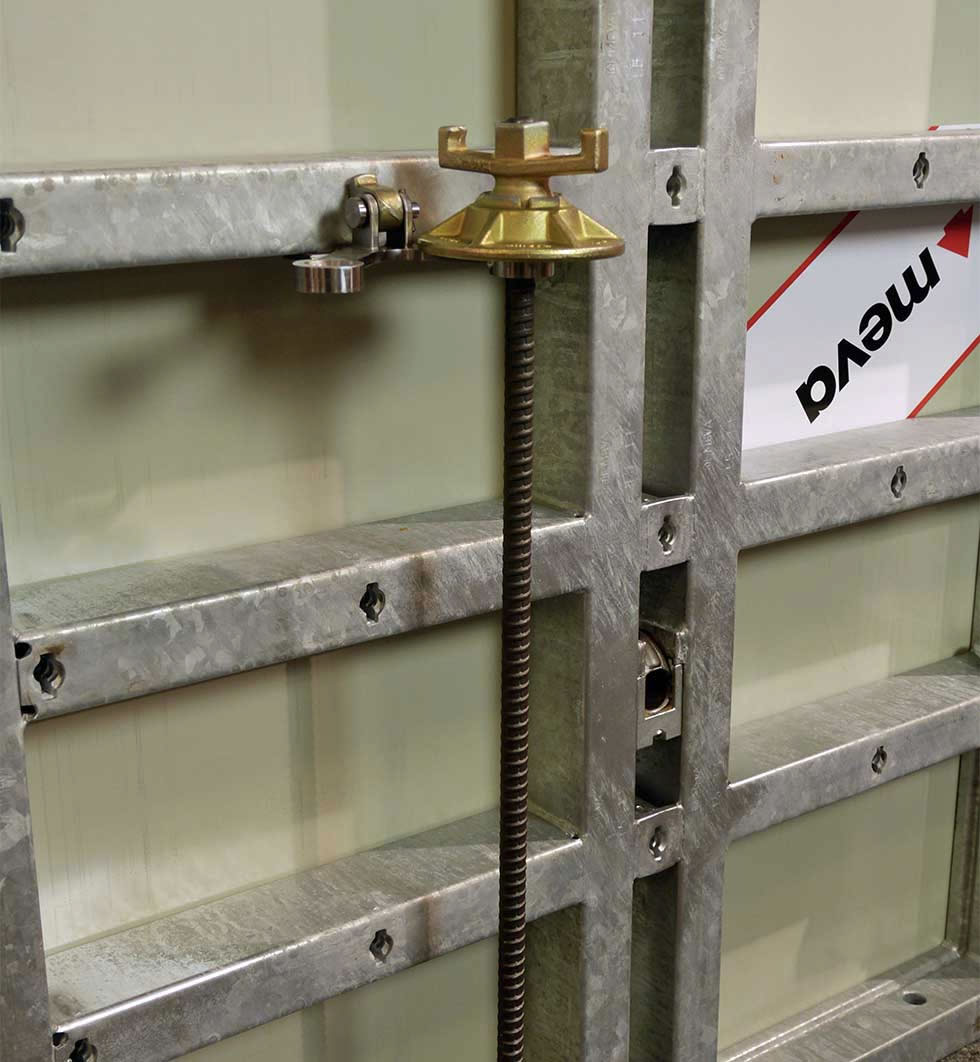

Cofraje StarTec XT

Cofraje StarTec XT

Conexiunea combinata integrata a noului cofraj StarTec XT combina 3 moduri de conectare intr-un singur sistem, intre care se poate comuta cu usurinta, chiar si cu o singura miscare a mainii, fara a instala accesorii suplimentare. Astfel, cofrajele unilaterale, ofera avantajele unor timpi de cofrare semnificativ mai scurti. StarTec XT este pe deplin compatibil cu StarTec si cu obturatorul AluStar, nu necesita utilizarea macaralelor.

Brosura
Specificatii
Vezi detalii
Card produs
Categorii recomandate
Cofraj de perete
Cofraj de perete
Unitate cofraj si schelarie, scara
Unitate cofraj si schelarie, scara
Schela de sustinere, pop
Schela de sustinere, pop
Esafodaj, schela de protectie si ecran de protectie
Esafodaj, schela de protectie si ecran de protectie
Cofraj pentru planseu
Cofraj pentru planseu
Constructii

Fereastra, izolatie, caramida, adeziv, ...

Instalatii mecanice

Cazan, ventilator, baterie sanitara, ...

Instalatii electrice

Intreruptor, releu, camera video, cablaj, ...

Echipamente

Mobilier urban, stivuitor, mobila de birou, ...

Unelte

Software CAD, aparat de masurat, utilaj, ...
