Aluminium T profile with open joint
Applications:
These profiles are ideally designed for fixing flat panels (HPL, fibre-cement and composite panels) with penetrating fasteners.
Advantages:
- recessed joint that doesn't reflect sunlight, leaving the joint dark
- significant inertia (Overall dimensions: 90 mm (depth) x 110 mm (expose face)
- compliant with the CSTB 3194 technical specifications
- 6063 T66 aluminium in accordance with standard NF EN 1999
- 3 or 6 LM lenght
- the half profile is designed for ends (building edge, bay window edge, etc.).

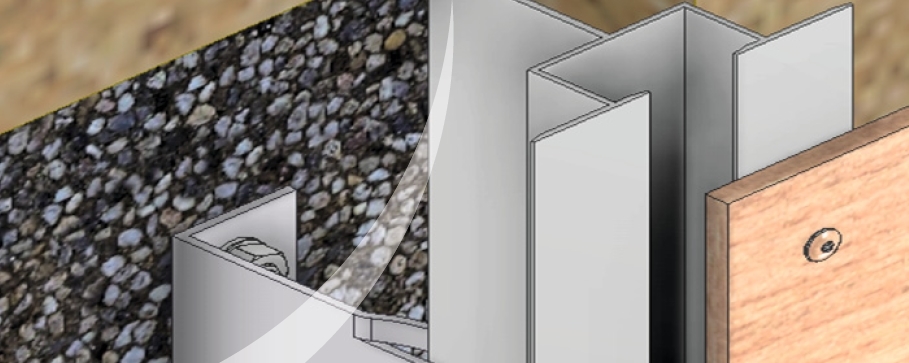

Principle:
There are two variations depending on whether it is on an intermediate section or at an end (edge, along a bay window, etc.)
