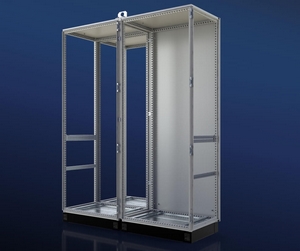

VX25 Enclosure systems

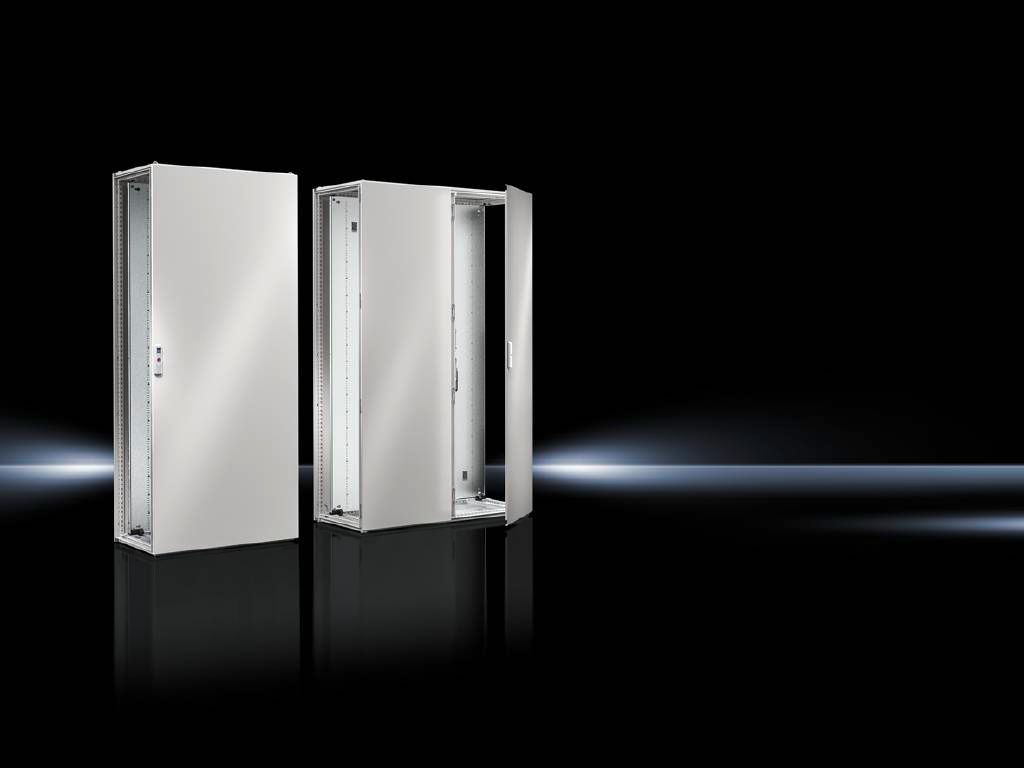

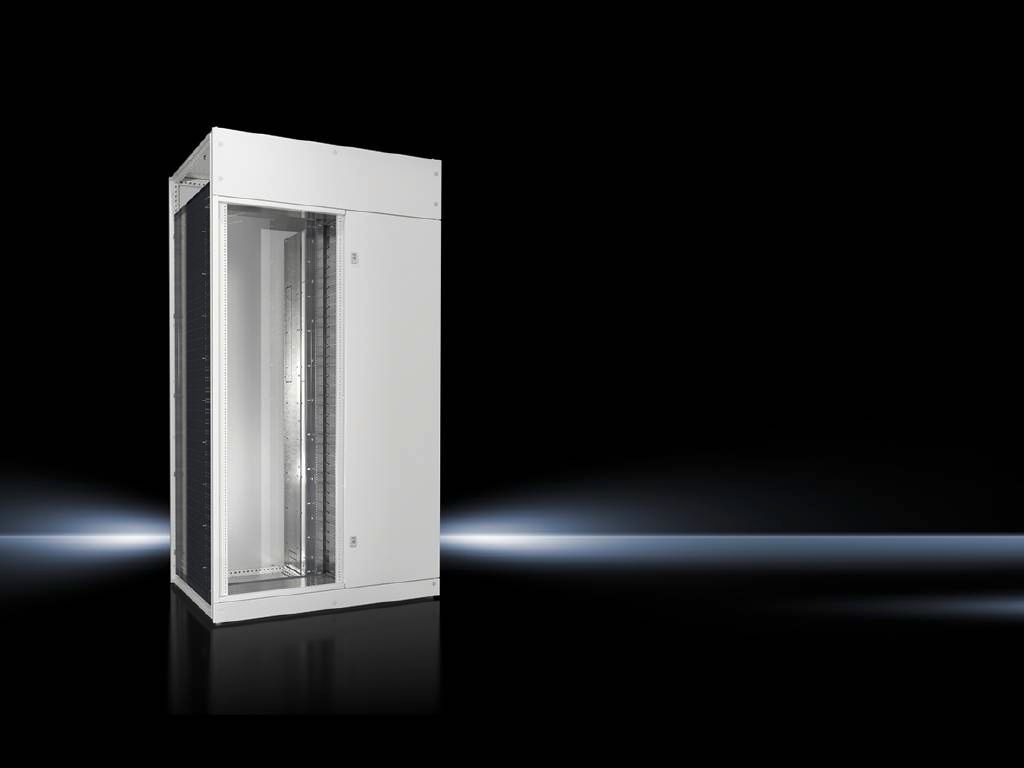

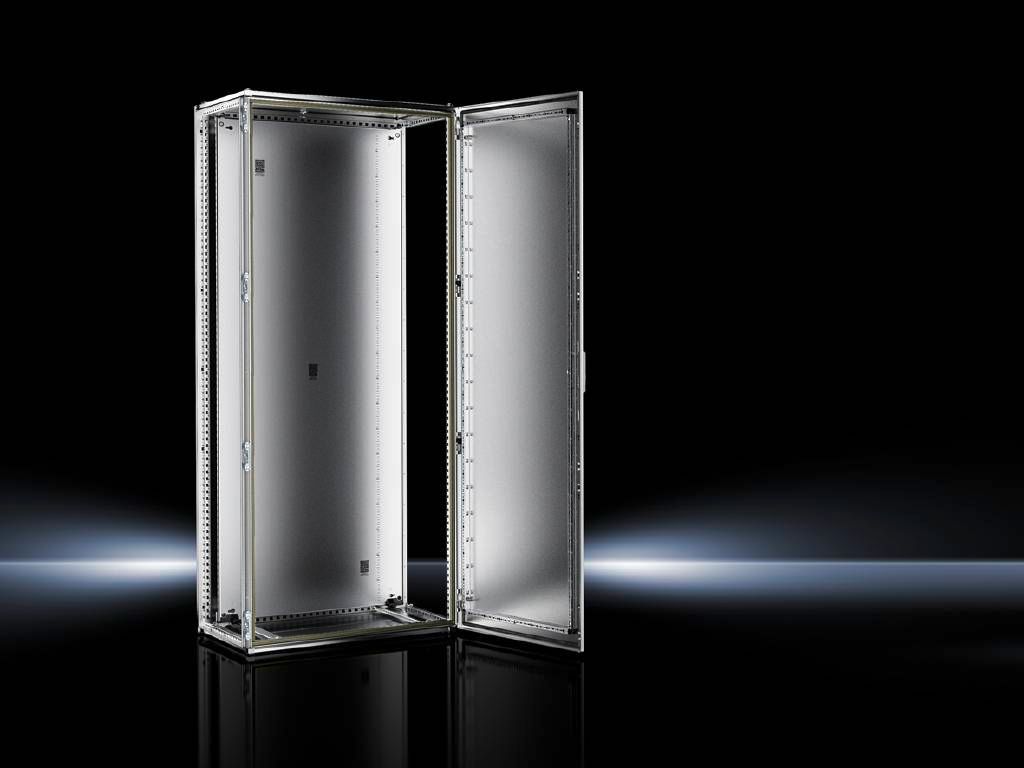

Baying enclosure system VX25, sheet steel
System perfection. The new sheet steel VX25 baying enclosure system provides maximum data quality and seamless engineering, a low level of complexity, plus time savings and reliable assembly. The VX25 large enclosure system retains a number of tried-and-trusted features from the TS 8 and combines them with countless new and optimised functions to set new standards in perfect efficiency.
The benefit providers
More digitisation
The QR code on all machinable enclosure panels permits fully automated incorporation into the production workfl ow, for seamless digital monitoring at every stage, from the incoming merchandise through to completion.
More labour-saving
The new hinge is designed for simple, toolfree installation and removal of the doors, eliminating the need to separately unlock and lock the hinge bolts.
More reduction of parts
The frame section, which is identical both horizontally and vertically, allows uniform punched sections and rails to be used throughout, reducing the number of part variants by up to 40%
More installation security
The stable base frame enables the direct, secure attachment of the enclosure from the inside. The large opening makes it simple to install cables with large bending radii from the mounting plate to the base.
More assembly-friendly
The frame section enables completely unhindered assembly, even from the outside, so that punched sections can be retro-fi tted in areas that are no longer accessible from the inside.

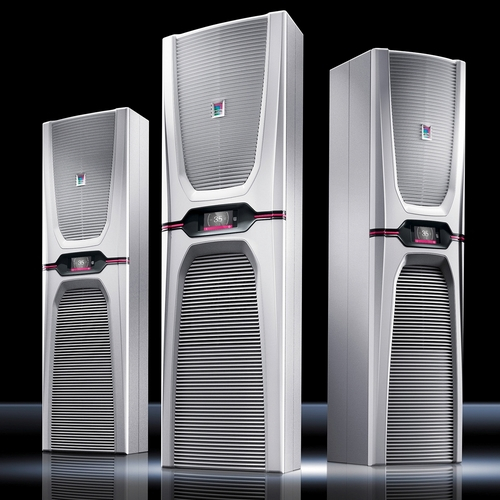

VX25 and Blue e+
- Cooling unit with 1.5 kW and Blue e+ technology in the dimensions W x H x D 800 x 2200 x 600 mm – integrated into the VX25 baying enclosure system
- No assembly outlay – the cooling unit, door limit switch and connection cabling are installed ready-to-connect
- State-of-the-art design – not a cooling unit built onto the enclosure.
Excellent planning certainty
- The digital twin of the Blue e+ integration solution is available in the EPLAN Data Portal
- Dependable and effi cient construction planning with EPLAN Pro Panel
- “Thermal Design Integration” can be used to produce a graphical display of exclusion zones dictated by ventilation requirements, the area with optimum climate control and hot spots.
Ready for Industry 4.0
- Intelligent interfaces and software
- Simple incorporation of cooling units into huge range of IoT applications using the Rittal IoT interface (optional)
- New applications and smart services can therefore be achieved.
Efficient and flexible
- Excellent energy effi ciency thanks to the innovative hybrid technology of the Blue e+ principle
- Suitable for international use due to unique multivoltage capability
- Longer service life of components due to component-friendly cooling.
