Flexible, fast and safe

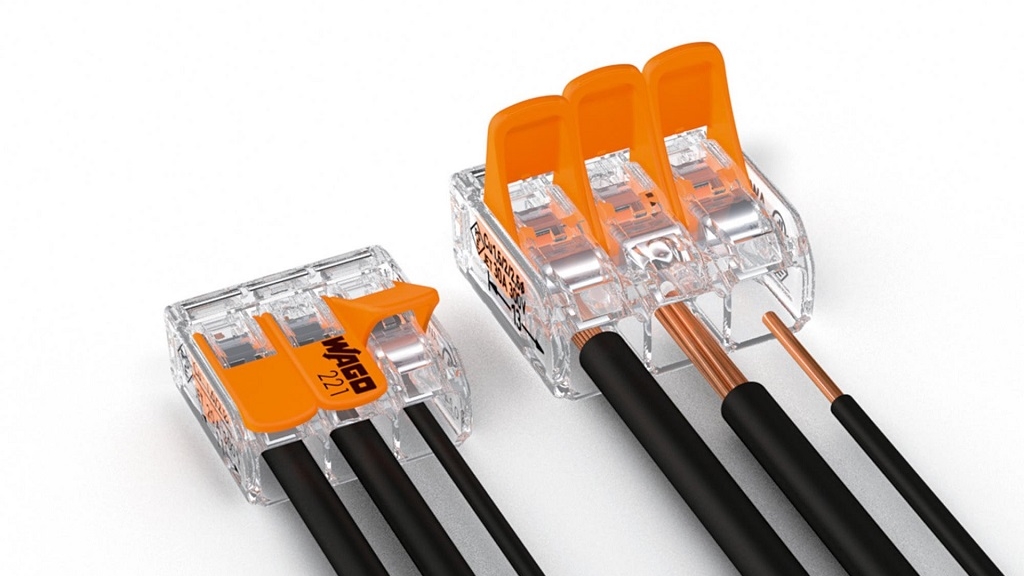

Pull the lever up, insert a conductor and push the lever back down - done! The 221 Series Splicing Connector connects solid, stranded and fine-stranded conductors easily, quickly and safely.
But this connector wants to do more!
The 221 Series Splicing Connector is well-suited for the following applications in:
- Building installations
From intercom system wiring to electrical ovens – connecting different conductor types is quick and easy with compact 221 Series Splicing Connector.
- Hazardous areas
Creating entirely new design possibilities for hazardous areas – particularly for the manufacturers of junction boxes, terminal boxes, lights or electronic devices.
- Devices.
Proven in electrical installation; promising for design now discover the advantages of the WAGO 221 Series COMPACT splicing connector in device manufacturing.
The unbeatable benefits of the WAGO 221
Pull the lever up, insert a conductor and push the lever back down – done!
Advantages of the 221 Series Splicing Connector for all conductor types ranging in size from 0.14 to 6 mm² (26–10 AWG):
- Connect solid, stranded and fine-stranded conductors
- Save time for installers and device manufacturers
- Quickly install devices with higher power consumption
- Safely install long cable, runs with larger conductor cross sections

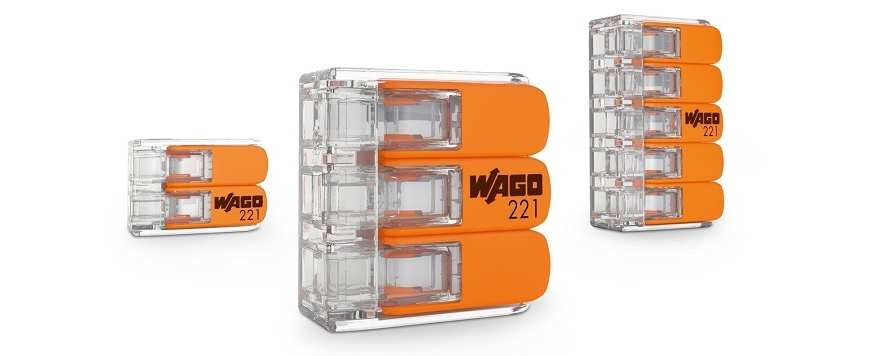

Two sizes for all conductor types
Quickly and easily connect all conductor types of different cross sections using two-, three-, and five-wire connectors. The new connectors accommodate fine-stranded conductors from 0.14 to 4 mm², as well as solid and stranded conductors from 0.2 to 4 mm² (24-12 AWG). With the 6 mm² (10 AWG) variant, you can connect all conductor types – with cross sections from 0.5 to 6 mm² (2−10 AWG).
Extremely easy to use
WAGO’s splicing connectors can be opened easily and quickly. Opening the levers on the 221 Series takes very little effort. This means you can connect conductors quickly - and without any tools! While you are connecting the conductor, recessed handles on the sides ensure an easy, secure grip on the connector.
Two test slots
With the new 221 Series Splicing Connectors, you can now test the voltage from two different sides - even when they are installed. The connectors have two test slots right where the WAGO imprint appears: one in the conductor entry direction and one on the opposite side. This accessibility provides extremely convenient testing conditions, even after installation, within a wide range of applications. All connector variants also provide a secure contact for all standard test probes.
The 221 series conquers the distribution cabinet
Mounting carriers are available for every 221 Series Splicing Connector - whether the two-, three- or five-wire model. They can be mounted vertically as well as horizontally. Secure the carrier by snapping it onto the DIN-rail, or with screws on smooth surfaces. The flexible mounting clamps simplify both connector insertion and removal. Conductors can be conveniently connected and removed before or after inserting a connector into the carrier. One test slot is always accessible, ensuring compliance with VDE standards.
WAGO 221 series mounting carrier now available in new colors
The new color versions in dark gray/yellow and blue underscore the clear recognizability of the distributions of neutral and PE conductors in the distribution box, which are achieved conveniently with the WAGO 221. These assemblies also ensure quick and easy expansion of neutral or PE distribution with the 221 Series connection terminals up to 6 mm². The clear installation allows faster troubleshooting and maintenance.
