Standard-compliant office workplace lighting for high co-working spaces – with the track as a flexible base.

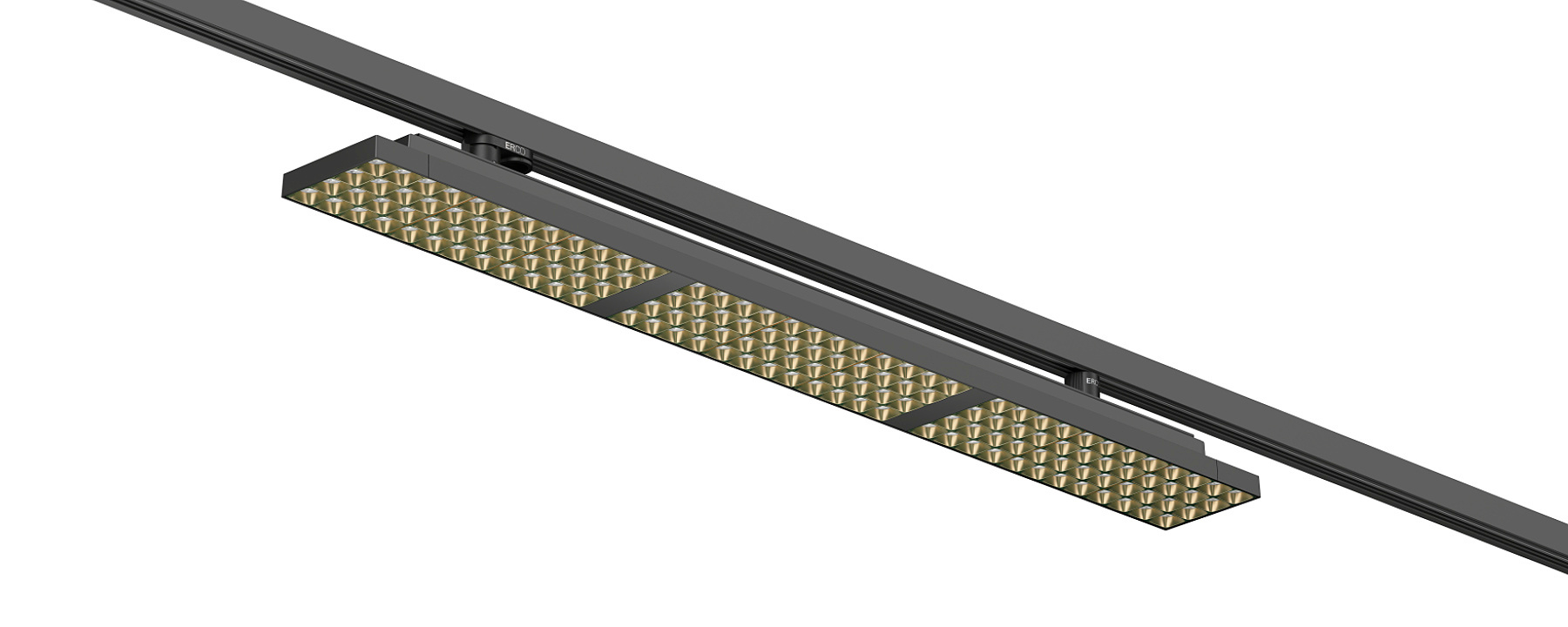

In keeping with modern, dynamic working environments in which office layouts are constantly changing and adapting, Jilly linear luminaires for track provide efficient lighting for workstations in compliance with standards. The especially flat housing and a striking anti-dazzle louvre characterise the elegant appearance. The lighting technology of Jilly linear combines a highly efficient lens system with an anti-dazzle louvre for visual comfort and luminous efficacy at the same high level.
In offices characterized by flexible use, Jilly linear can be rearranged on the track at any time. The luminaire is the ideal solution for standard-compliant, economical lighting concepts in modern co-working spaces with heights to 5 m.
Special features of Jilly linear
Suitable for office workstations
ERCO develops luminaires with the specifications of good glare control and high visual comfort. UGR values are used as support for purely norm-referenced lighting. With downlights though this should not be carried out using 'blanket' values, but should be implemented according to the individual arrangement of luminaires in the room.
Office lighting for high rooms
High-output luminaires enable flexible office lighting in conformity with standards for room heights up to 16 feet.
Louvres for efficient visual comfort
A louvre is designed to restrict the view into the luminaire, achieving efficient visual comfort with an emission angle of 90°. An anti-glare louvre available in black or silver enables the luminaire to blend with the material and colour of the ceiling.
Low construction height
Luminaires with a flat housing have an elegant appearance and direct the focus on the light.
Jilly linear in the application
Individualise Jilly linear for your use case
With our “ERCO individual” service we offer you extensive options for the individualisation of series products as well as support in the development of sophisticated special luminaires. In order to match Jilly linear even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:
- Anti-glare louvre: gold matt, silver matt, champagne matt or copper matt-coated and other colours
- Housing: 10,000 further colours.
Lighting technology
Downlights
Wide beam, rotationally symmetrical light distribution for general lighting. Good visual comfort in rooms with high ceilings.
- Light source
- 36.1 W - 36.6 W
- 5314 lm - 6739 lm
- Downlights
Luminaire arrangement
Downlights
For the uniform illumination of office workplaces, the luminaire spacing (d) between two Jilly downlights may be up to 1.5 times the height (h) of the luminaire above the working plane (rough guide).
- Arrangement: d ≤ 1.5 x h
- The wall offset should be half the luminaire spacing.
- Arrangement: a = d / 2
