Aliplast presents Terassendach roof system without thermal insulation

Aliplast presents Terassendach roof system without thermal insulation

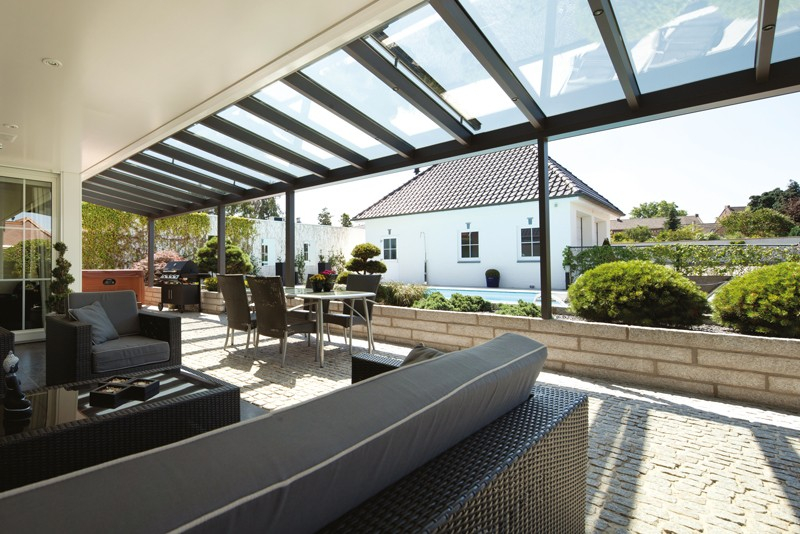

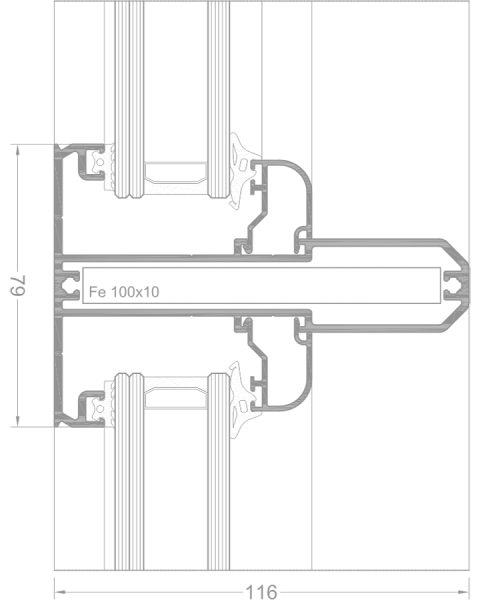

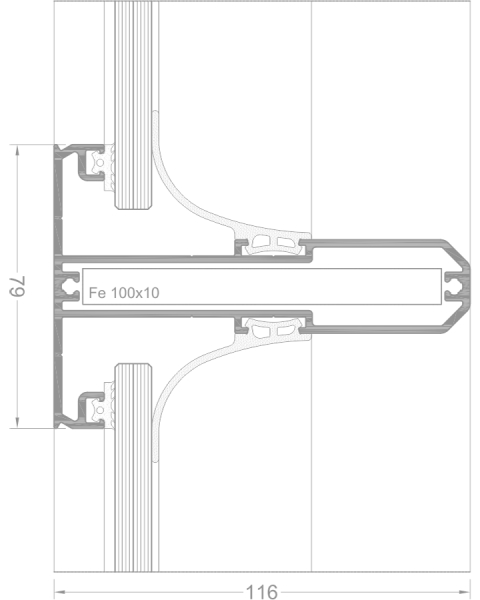

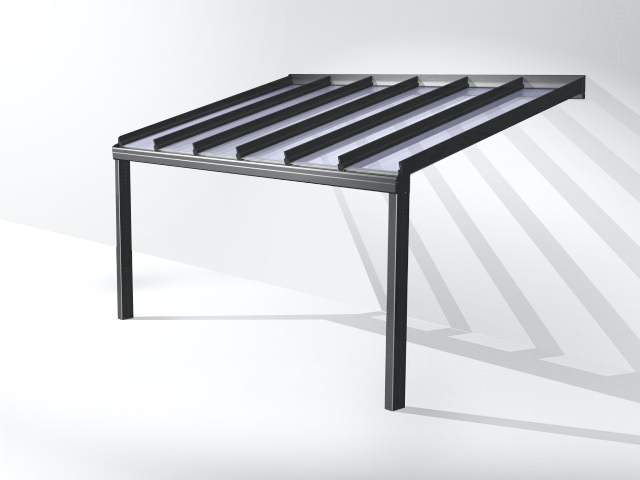

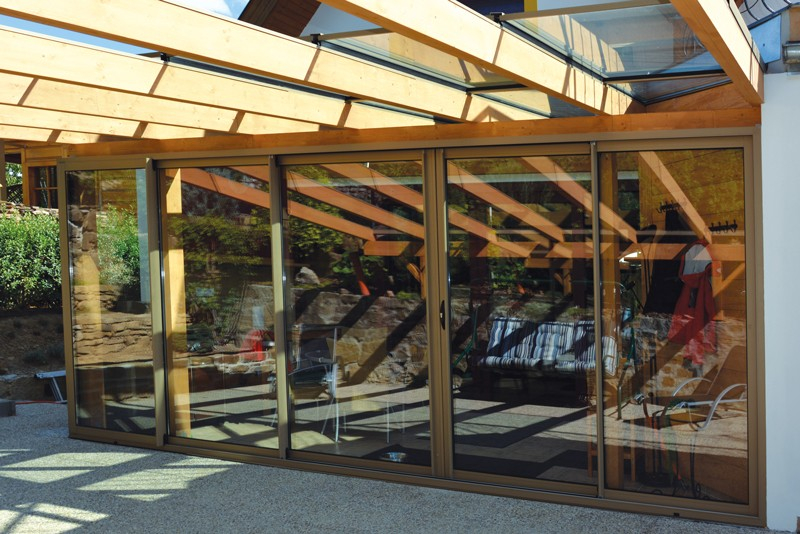

The Terassendach system is suitable for infills made of wall polycarbonate and glazing units (single, double and triple glazing).

Aliplast presents Terassendach roof system without thermal insulation
Aliplast presents Terassendach roof system without thermal insulation

Available options of the system:

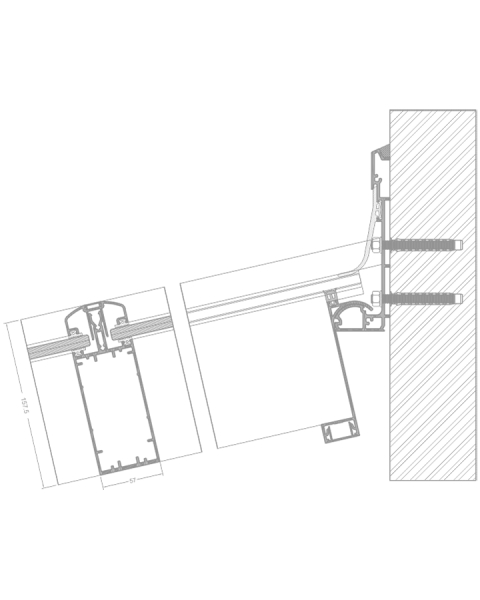

  • eave with load-bearing rafter from the external side
  • pyramidal roof with various types of the load-bearing rafter (fixed externally)
  • double-pitched roof with external rafter
  • roof with valley gutters and external rafter.
Aliplast presents Terassendach roof system without thermal insulation
Aliplast presents Terassendach roof system without thermal insulation

Technical description:

  • span between two rafters up to 600 cm
  • depth of the load-bearing rafter up to 600 cm*
    *assumptions: VSG 10 mm, span between rafters 80 cm, snow load 85 kg/m², deflection coefficient L/200
  • load-bearing structure with various gutter solutions
  • option to install solar shading devices to lateral structure beams
  • a wide variety of gutter solutions
  • roof pitch from 5 to 25 degrees
  • option to attach lighting through a terminal strip
  • quick prefabrication.

A wide range of colours: RAL palette (Qualicoat 1518), structural colours, Aliplast Wood Colour Effect (Qualideco PL-0001), anodized (Qualanod 1808) and bi-colour.

Produse mentionate in articol
Sistem de acoperis pentru gradina de iarna Aliplast Terassendach

Sistem de acoperis pentru gradina de iarna Terassendach

Sistemul de acoperis fara izolatie termica Terassendach este potrivit pentru umplerea golurilor cu pereti din policarbonat si unitati vitrate (geamuri simple, duble si triple). Distanta dintre doi capriori este de pana la 600 cm; structura portanta cu diverse solutii de jgheab; optiune de instalare a dispozitivelor de umbrire solara pe grinzi de structura laterala; inclinare a acoperisului de la 5 la 25°; optiune pentru atasarea iluminatului printr-o banda terminala; prefabricare rapida. Disponibil intr-o gama larga de culori: paleta RAL (Qualicoat 1518), culori structurale, Aliplast Wood Color Effect (Qualideco PL-0001), anodizat (Qualanod 1808) si bicolor.

Brosura
Specificatii
Vezi detalii
Card produs
