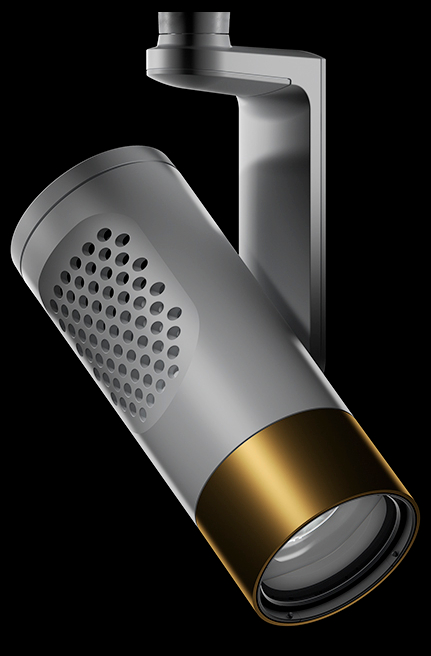

Spot profesional pentru muzee si galerii de arta ERCO Eclipse

Galerie

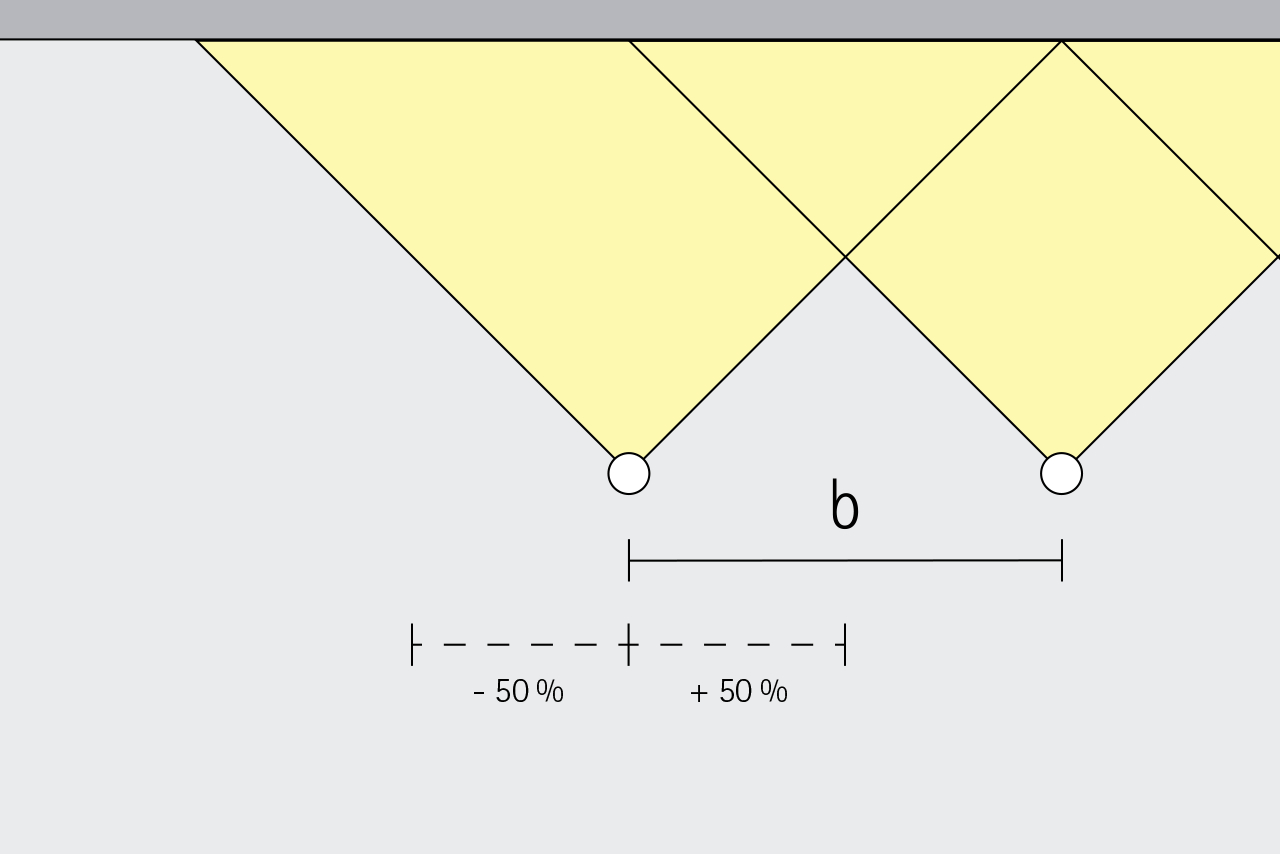

Wallwashers cannot always be positioned on the ceiling in accordance with general planning recommendations, due to beams in the room or air conditioning technology that need to be considered. The new generation of wallwashers enables very uniform light distribution for different luminaire spacings. With a room height of 6 m, the luminaire spacing can vary from 1 m to 3 m. Compared to previous wallwashers, the luminaire distance can vary by +/- 50%, with comparable quality of light on the wall.

Galerie

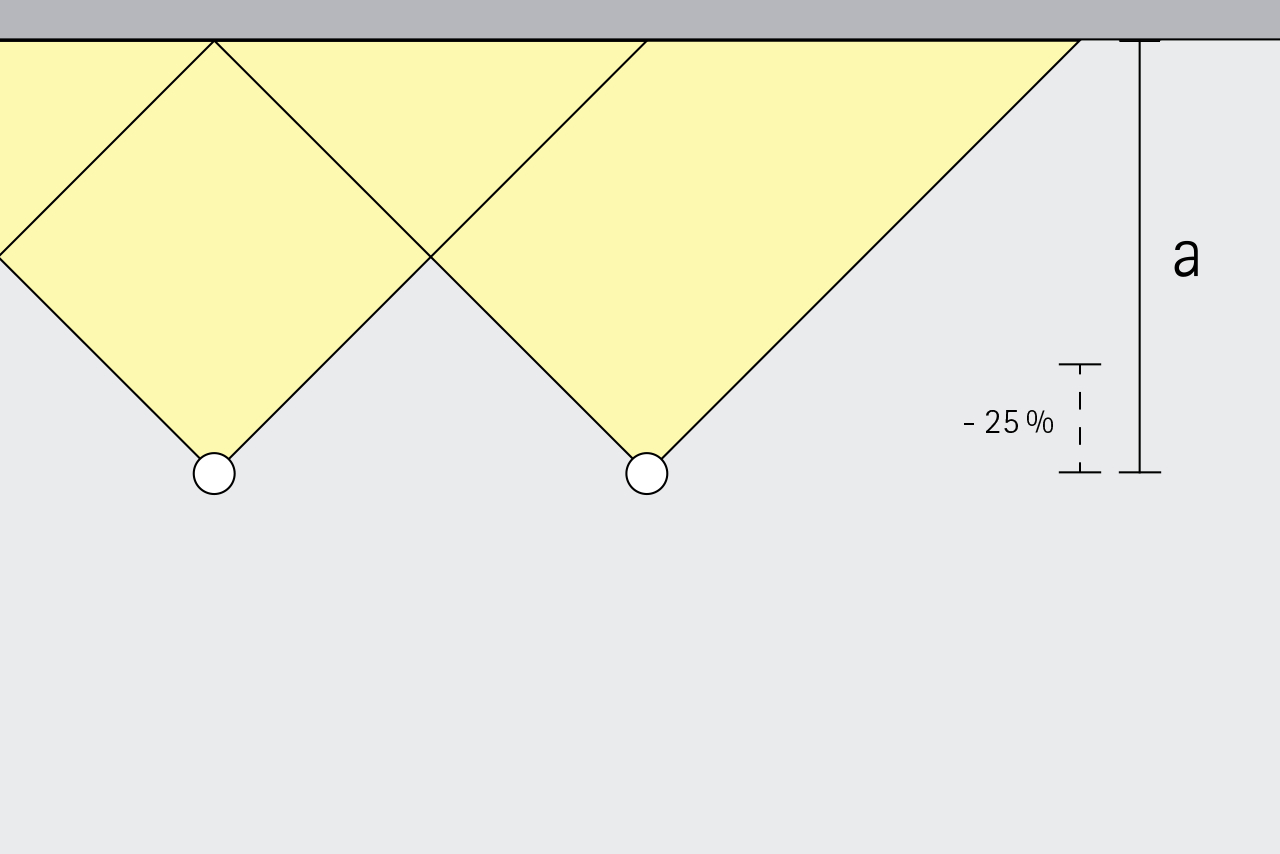

Eclipse wallwashers are suitable for installation close to walls. With a room height of 6 m, the new wallwashers can move up to 1.5 m away from the wall. Compared to conventional wallwashers, the new Eclipse wallwashers can reduce the distance to the wall by up to 25% with identical quality of light.

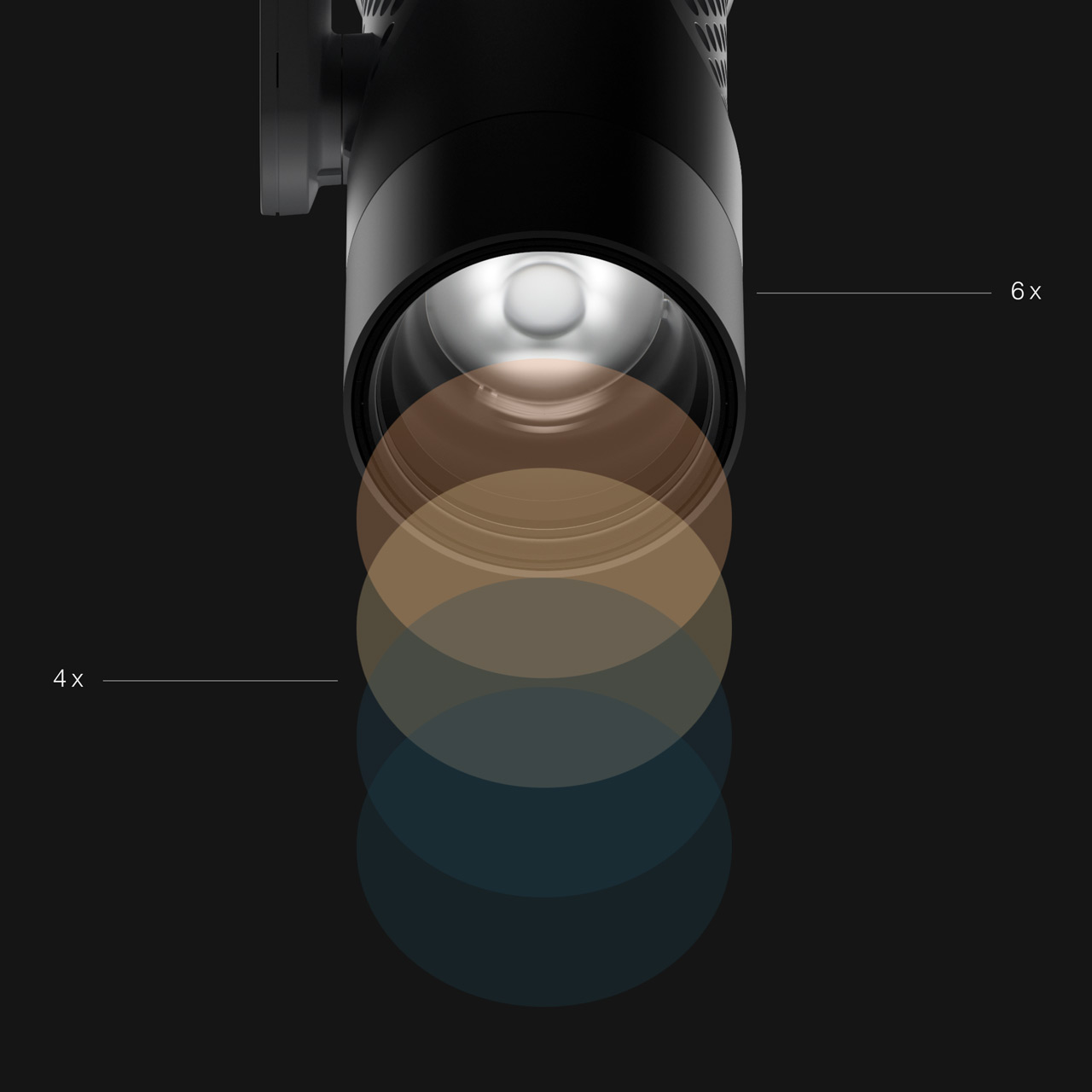

6 light spectra for any application

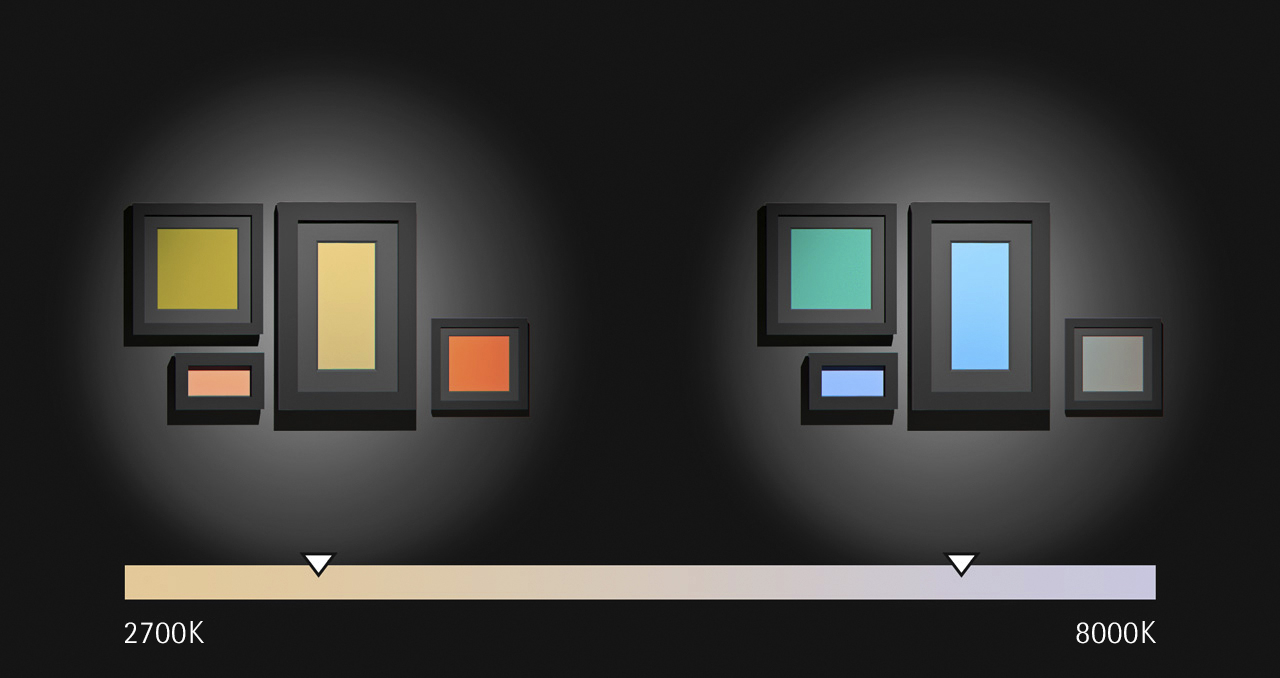

Eclipse gives you the perfect combination of light colour and colour rendering. 3000K CRI 97 is the right choice for the perfect rendering of colours. Maximum energy efficiency is achieved with 4000K CRI 82. Four conversion filters create 24 additional spectra from six LED light colours.

Galerie

Galerie

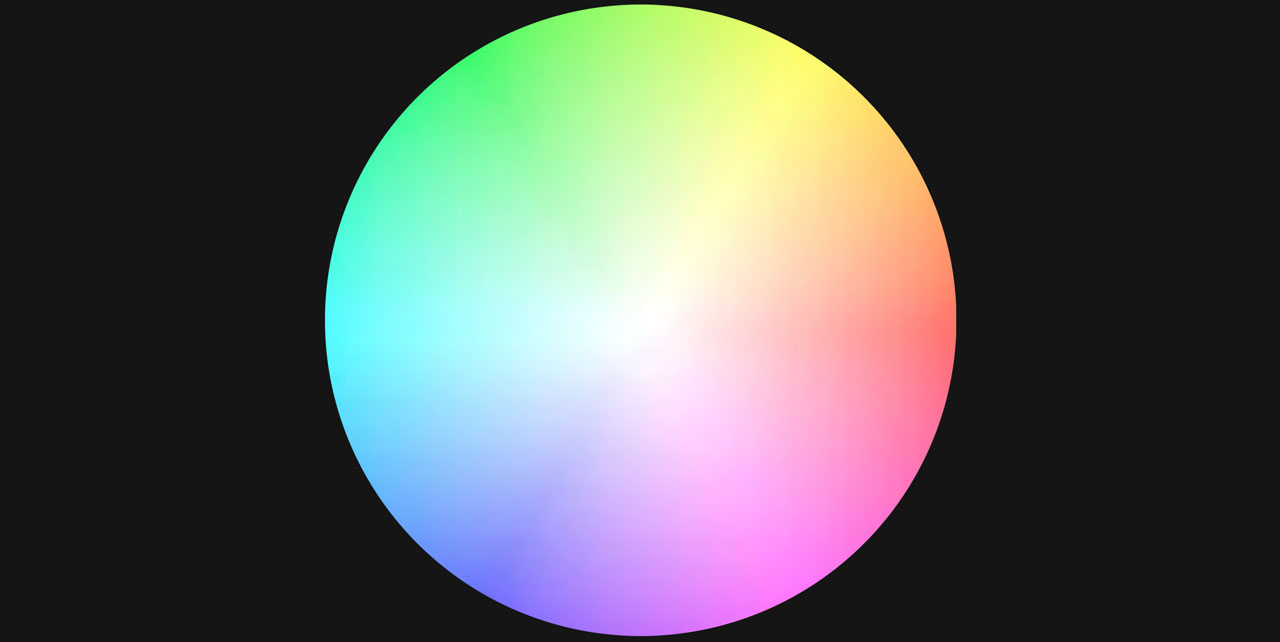

RGBW luminaires for coloured lighting design
LED-RGBW luminaires enable selection from over 16 million colours and pastel tones. A special optic achieves completely uniform, colour shade-free mixing – ideal for the coloured display of exhibits and merchandise.

Galerie

On-board Dim

Dimming via rotary control on the luminaire.

Multi-Dim

• DALI dimmable
• Push Dim
• Phase dimmable
  (leading edge, trailing edge and universal dimmer).

Three control modes in one control unit. Adjust the brightness via phase dimming or Push Dim, or alternatively via DALI in a DALI track.

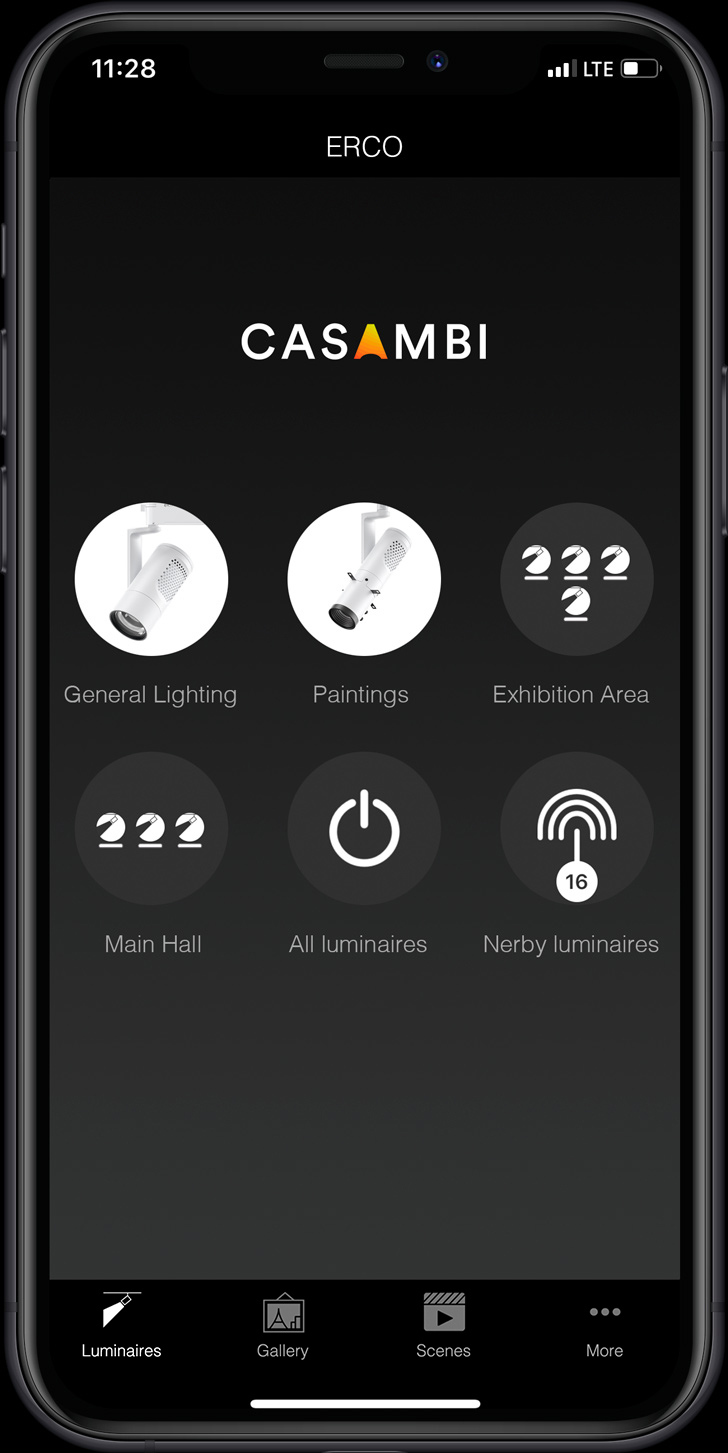

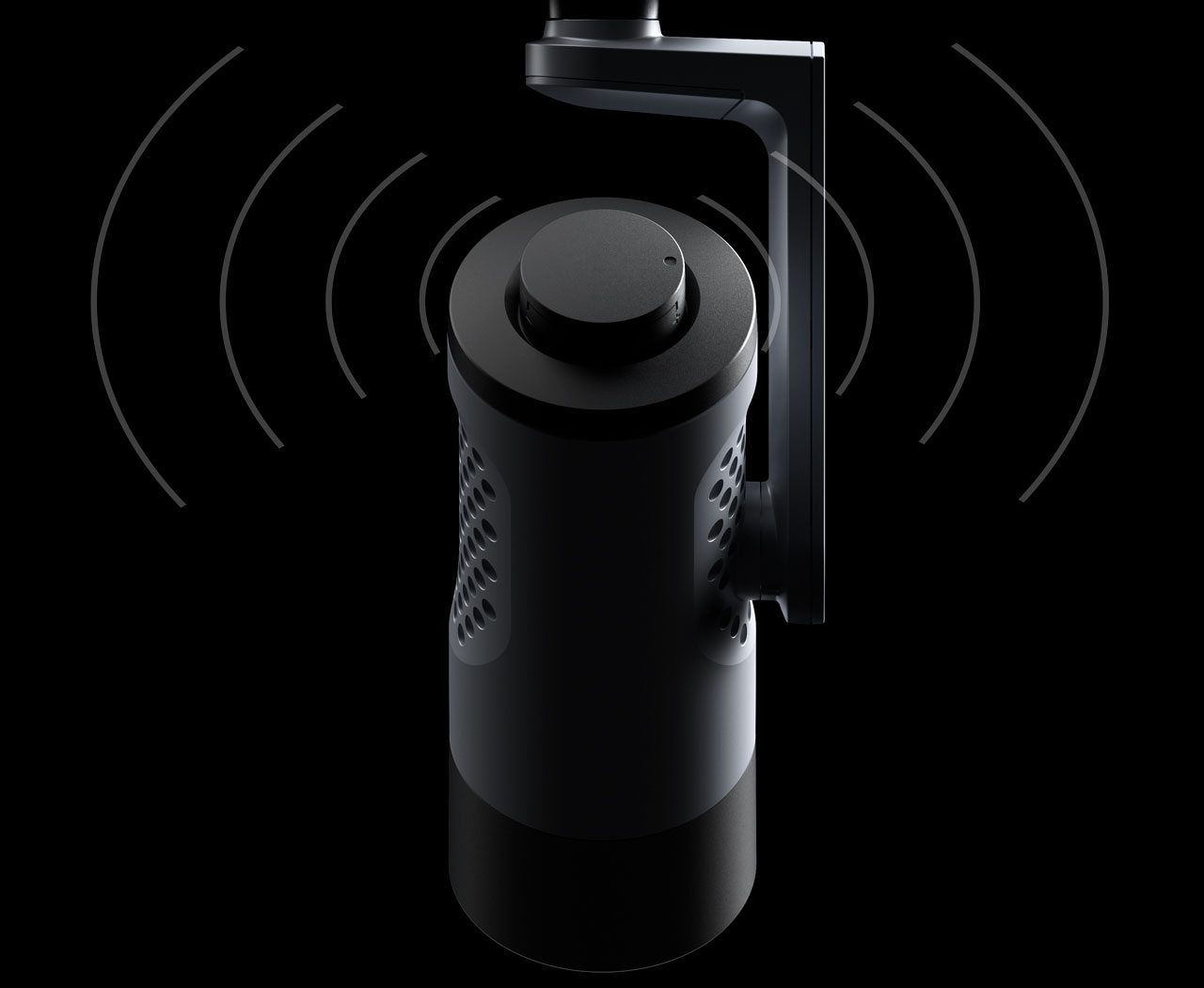

Casambi Bluetooth

Control luminaires wirelessly via Bluetooth using a smartphone or tablet without additional hard-ware. Individual switching and dimming, setting up light scenes and integrating sensors – everything is possible with Casambi Bluetooth, including control via DALI.

Zigbee 3.0

The wireless Zigbee radio standard is ideal for integrating into building automation systems and smart home networks. Simply control luminaires via smartphone and tablet and take advantage of the extensive control functions.

On-board Dim
Rotary control on the luminaire for manual dimming.

Casambi Bluetooth + DALI via Gateway
Wireless switching, dimming and programming via Casambi Bluetooth with a smartphone or tablet – also for RGBW and tunable white. Connect your Casambi Bluetooth luminaires wirelessly to a DALI Gateway (accessory) and control them in this way with your DALI system.

Zigbee 3.0
Wirelessly integrate your luminaires into your building automation via the Zigbee add-on control unit and a gateway.
